Lathe's Radius Ball Turning Tool with HSS Tool Bit II 3/8" Shank

Radius Ball Turning Tool Attachment for Lathe Machine | 3/8" Shank | Sturdy & Improved Design for Precision, Better Finish & Smooth Cutting

Key Features:

• High-Quality Material: Made from premium Tool Steel for durability and long life.
• M35 HSS Bit: Equipped with a high-speed steel (M35) bit, ensuring precise and clean radius cutting.
• Accurate Dimensions: Designed with precision, featuring 103.6mm width, 127mm height, and 28.4mm thickness.
• Versatile Application: Ideal for machinists, lathe operators, and metalworkers.
• Ergonomic Handle: Designed for comfortable grip and easy operation.
• Compact & Lightweight: Ensures easy handling and setup on various machine tools.
• Perfect for radius turning on bolts and fasteners
• Suitable for metal fabrication, CNC machines, and lathe operations
• Enhances precision and efficiency in machining workshops

Buyohlic Radius Bolt Turning Tool (10-BT-106)

• Material: Tool Steel
• Cutting Bit: M35 HSS for precision cutting
• Dimensions: 103.6mm (Width) × 127mm (Height)
• Ergonomic Handle: Easy operation & firm grip
• Durable & Precise: Engineered for machining accuracy

Key dimensions are labeled in millimeters

• Overall height: 127 mm
• Height of the upper part: 41.9 mm & Height of the lower part: 28.4 mm
• A dimension of "10" is also shown, possibly indicating a radius or thickness.
• Length of the base: 103.6 mm
• Distance from the tip to the center: 22.1 mm

Isometric View

• Provides a 3D view of the tool, showing the handle, shank, and cutting tip.
• A dimension of "5" is labeled, likely indicating a width or thickness.

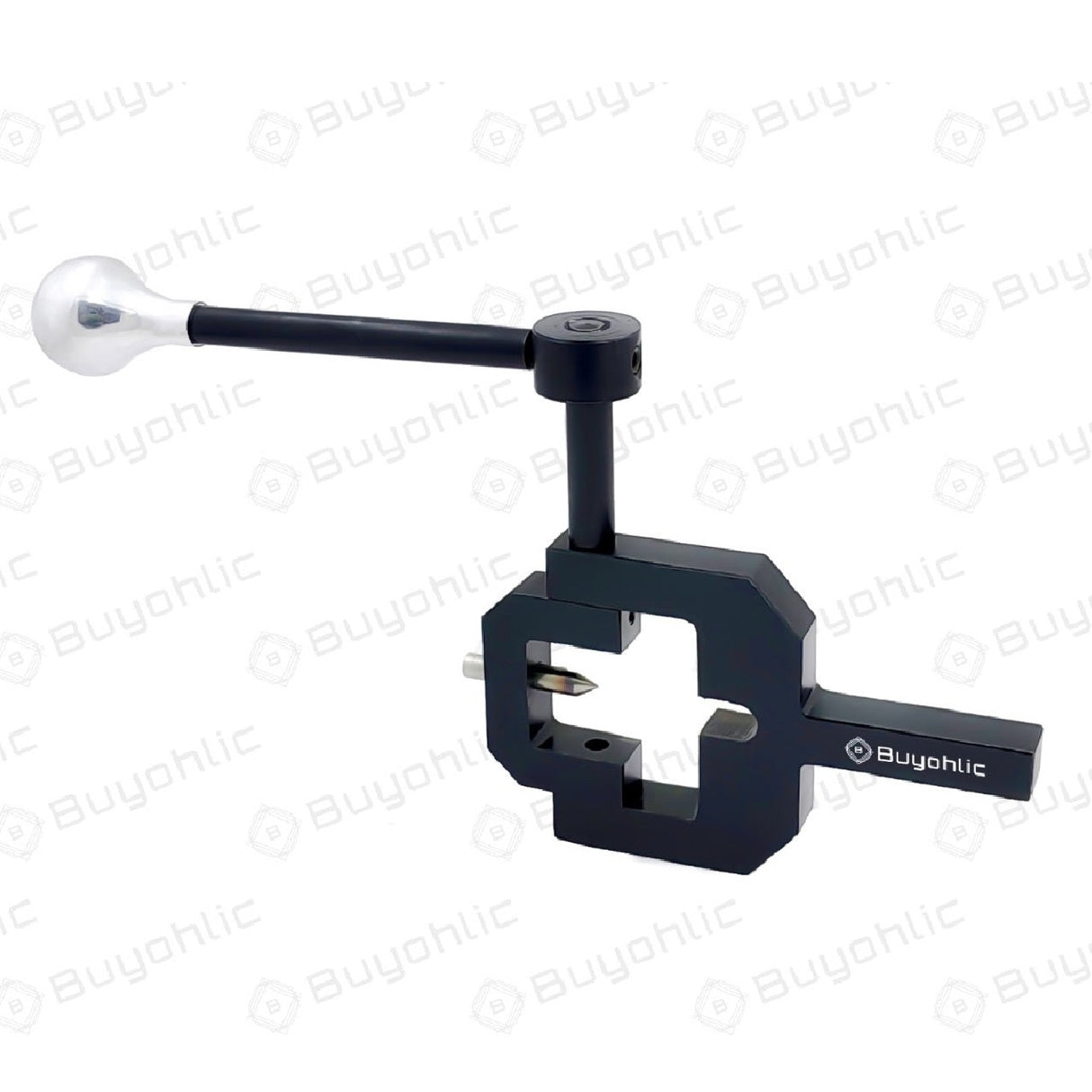

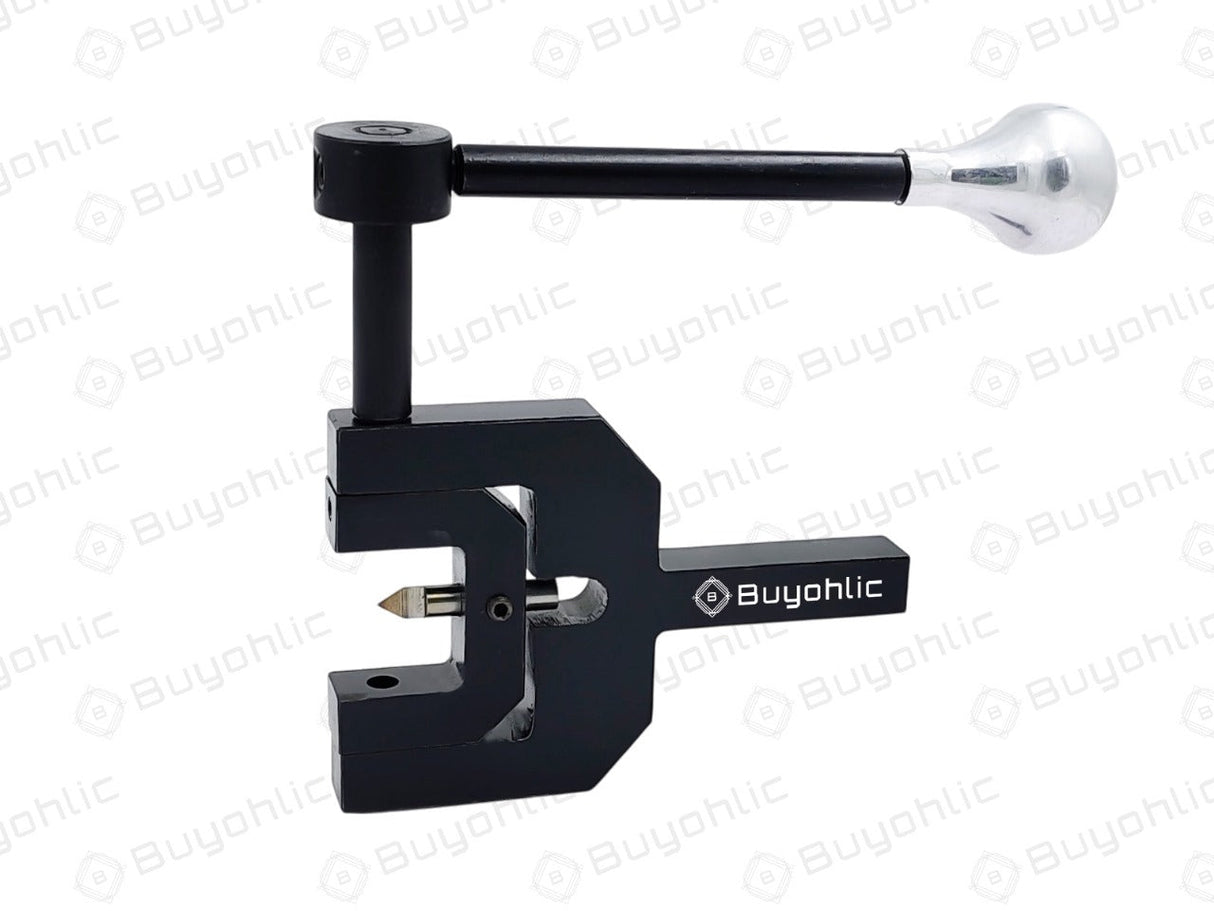

M35 Superior HSS Bit

Radius Ball Turning Tool with a labeled M35 Superior HSS Bit. The tool has a robust, black-colored metal body with a C-shaped design that securely holds the cutting bit. The M35 High-Speed Steel (HSS) bit is positioned at the center, designed for precise radius turning operations. The overall finish of the tool suggests durability and precision machining, likely used for metal lathe applications to shape spherical or curved surfaces.

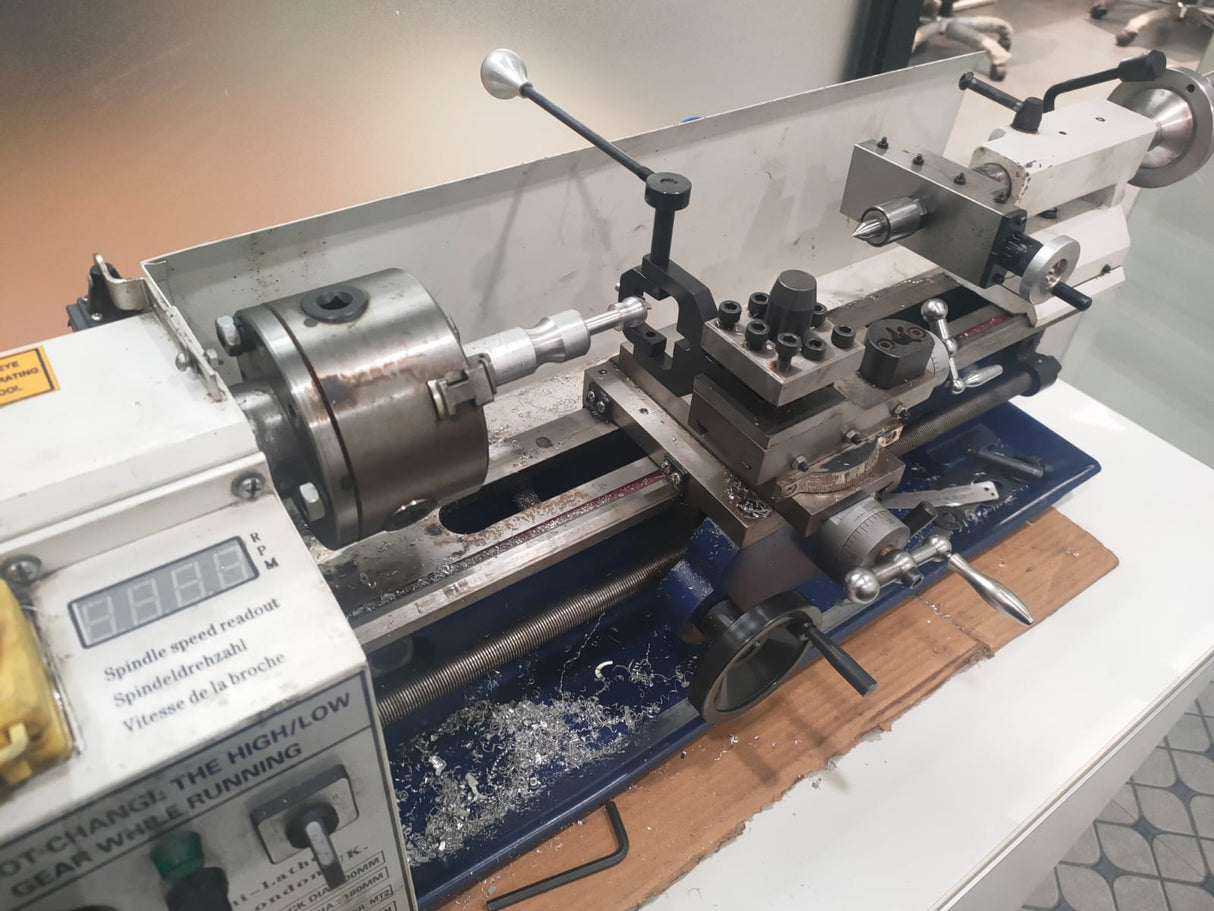

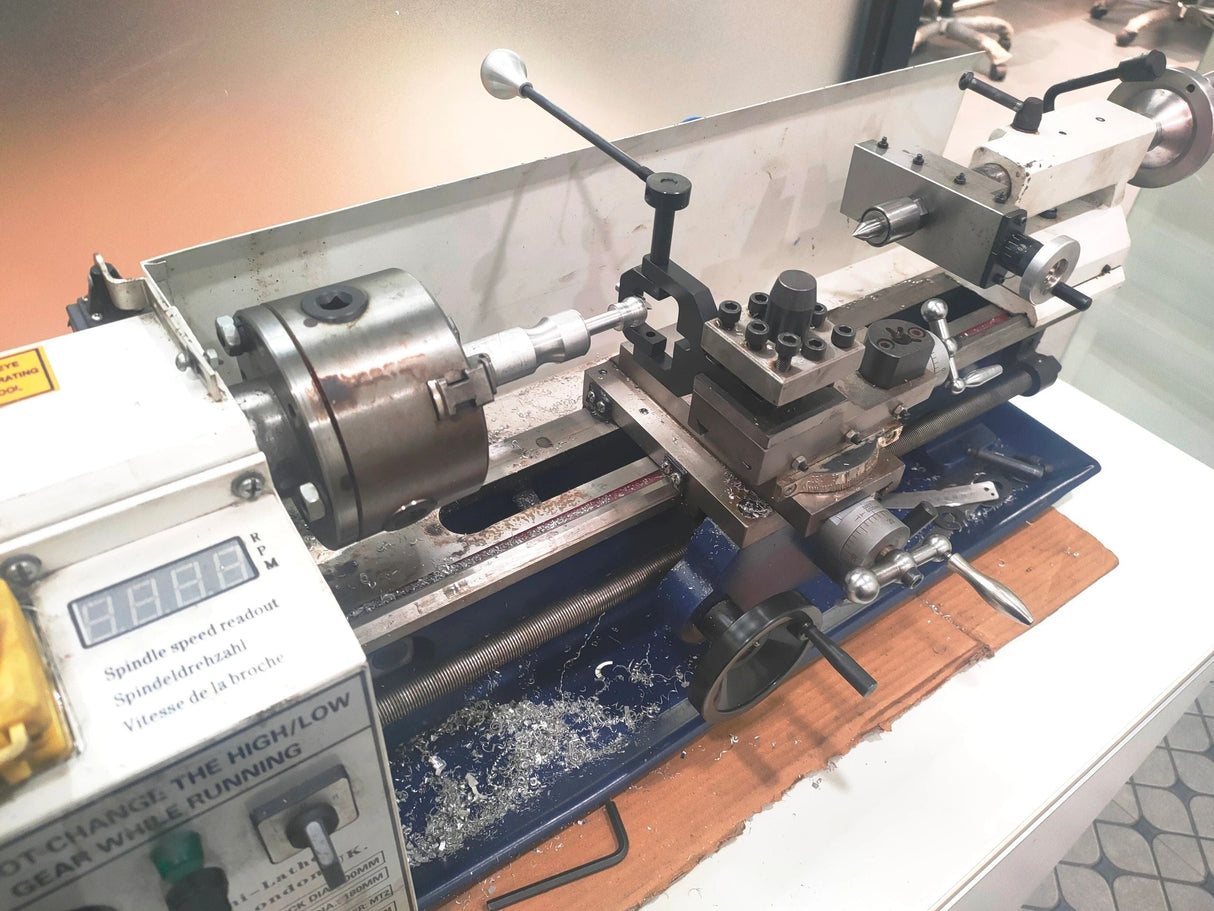

This image showcases a 7x14 mini lathe machine equipped with a radius ball turning attachment

Radius Turning Tool Finished Turned Components

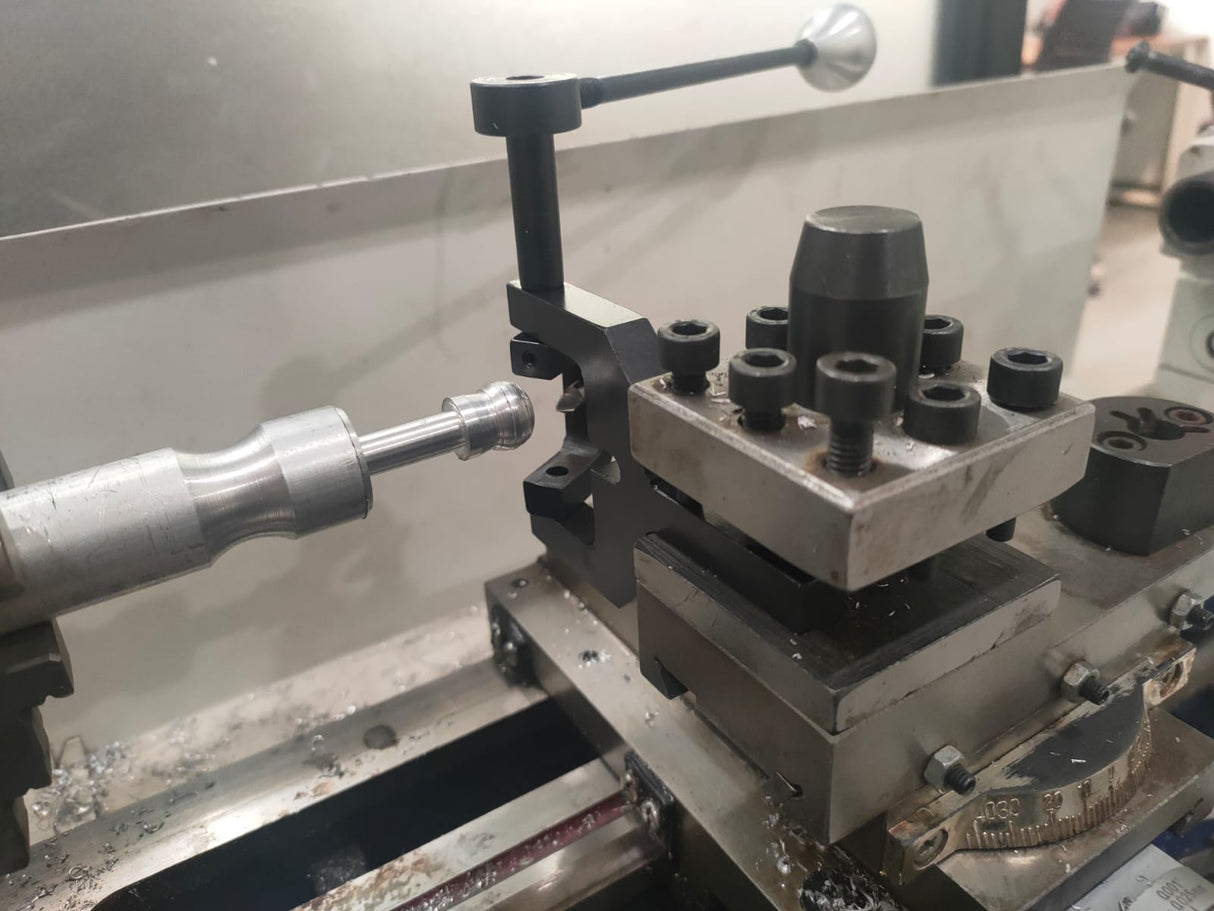

Radius Turning Tool mounted on a small metal lathe, actively shaping a workpiece. The tool is designed for cutting round shapes or curves in various materials like brass, aluminum, steel, and plastic.

• Radius Turning Tool: Mounted securely on the lathe. Features a black steel base with a curved cutting arm. Equipped with a carbide cutting insert for precision shaping.
• Lathe Setup: Small metal lathe shown in operation. Chuck holding an aluminum workpiece. Tool post securing the radius turning tool in position.
• Workpiece & Machining Process: The tool is actively cutting a round shape on the workpiece. A smooth curved surface is forming as the tool rotates.
• Finished Turned Components (Background): Various polished metal pieces showcasing the tool's capabilities. Includes examples such as: Ball joints Governor weights Railing knobs Nose cones Round contact points for tools
• Adjustment Handle & Mechanism: A fine-tuning handle for precise control. Mechanism allowing smooth circular cutting motion.
