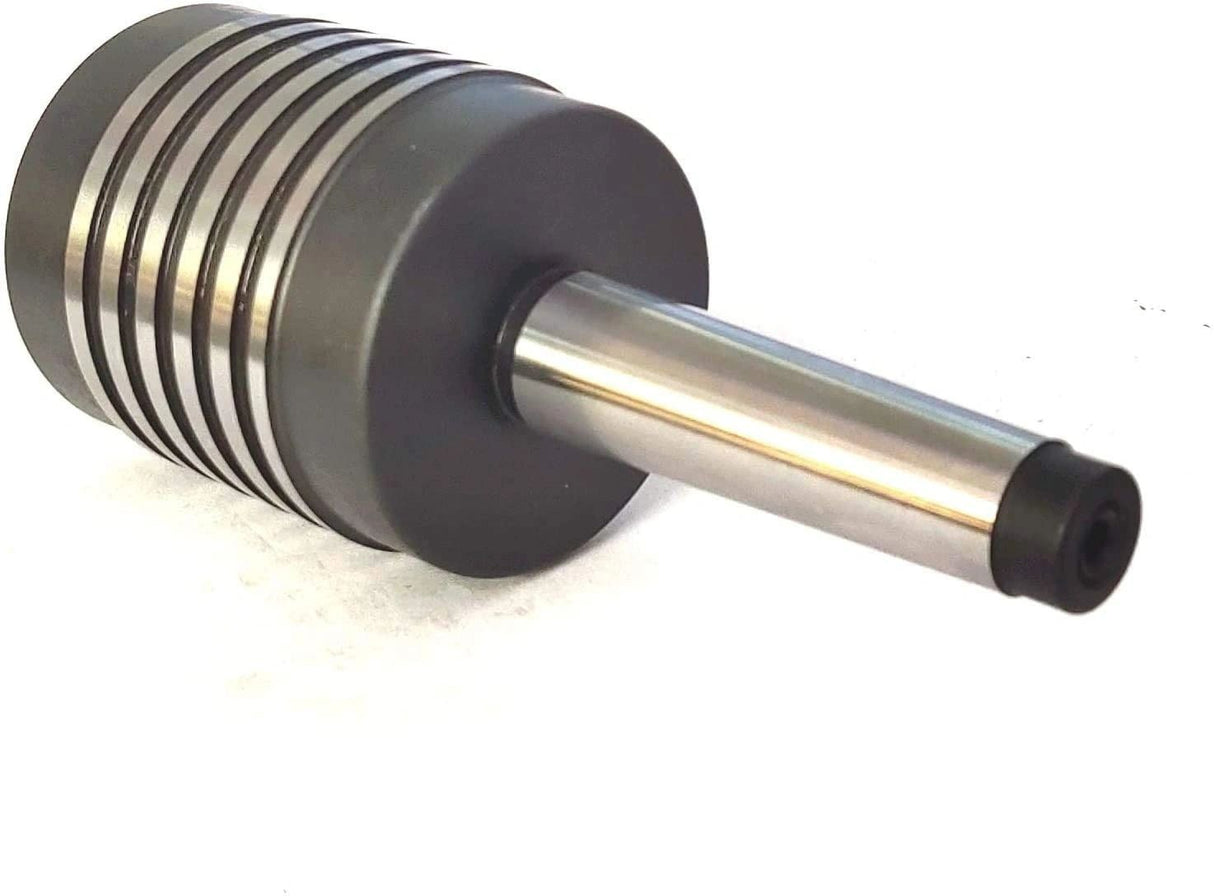

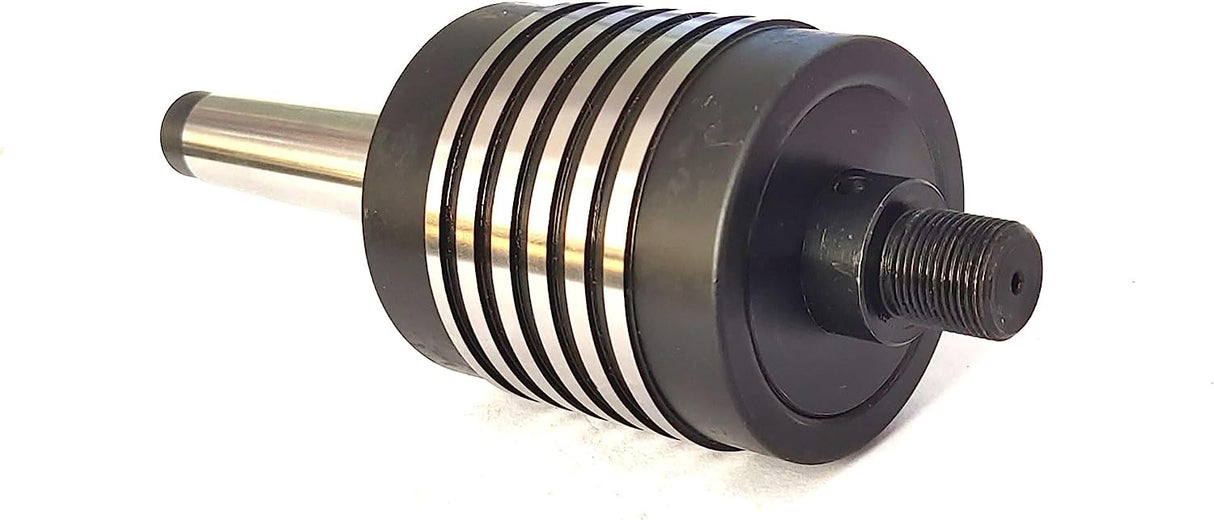

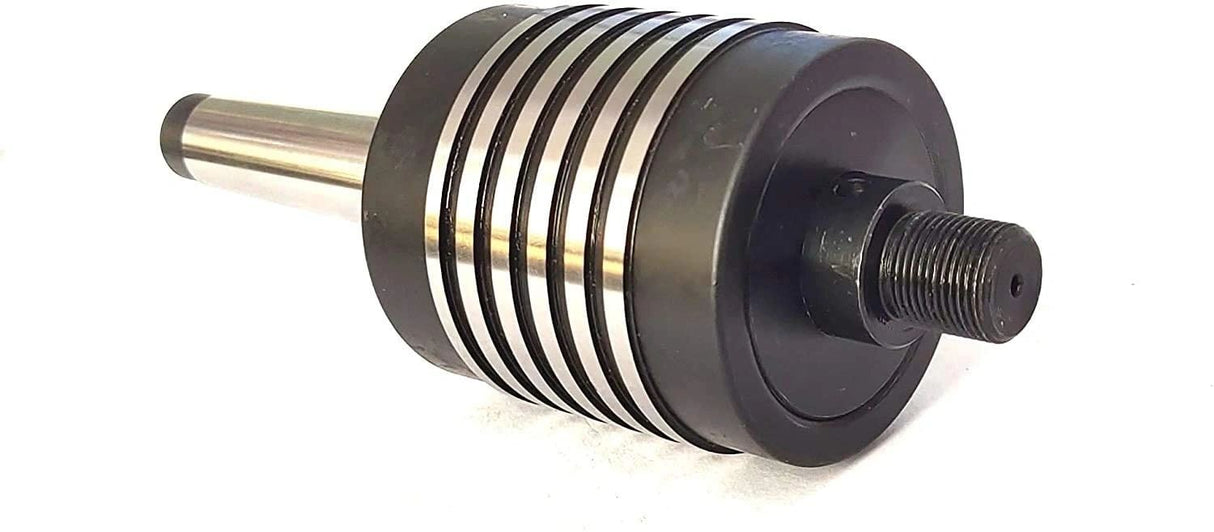

Double Bearing Live Revolving Center Centre- BORE Ground Run Out Within 5 MICRONS

A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.

Features:

1. Shank Options:

   • MT2 (Morse Taper 2)
   • MT3 (Morse Taper 3)

2. Thread Sizes:

   • M12 x 1
   • M14 x 1

3. Precision Construction:

   • BORE Ground Run Out: Within 5 microns, ensuring high accuracy and minimal deviation.

4. Double Bearing System:

   • Bearings:
     • 1 x Taper Radial Bearing
     • 1 x Ball Bearing
   • Enhanced Stability: The double bearing design provides superior stability and load-bearing capacity, reducing vibrations and ensuring smoother operation.

5. Dimensions:

   • Body Diameter: 52 mm
   • Bearing Case Diameter: 58.70 mm
   • Overall Length (OAL): 180 mm

6. Durable Materials:

   • Constructed from high-quality materials for long-lasting performance and reliability.

Benefits:

• High Precision: With a ground run out within 5 microns, this live center offers exceptional accuracy for high-precision machining tasks.
• Versatile Compatibility: Available in both MT2 and MT3 shank sizes with M12 x 1 and M14 x 1 thread options to fit a wide range of lathes.
• Stability and Smooth Operation: The combination of a taper radial bearing and a ball bearing ensures maximum stability and smooth rotation, reducing wear and extending the tool's lifespan.
• Robust Design: The durable construction and precise engineering make this live center suitable for demanding machining environments.

Applications:

• Lathe Operations: Ideal for various turning applications, providing reliable support and precision.
• Metalworking: Suitable for professional machinists and hobbyists working with metal lathes.
• High-Precision Machining: Perfect for tasks requiring high accuracy and stability, such as CNC turning and complex part manufacturing.

Enhance your lathe operations with the Double Bearing Live Revolving Center, designed for precision, stability, and durability, meeting the needs of both professional machinists and hobbyists.
