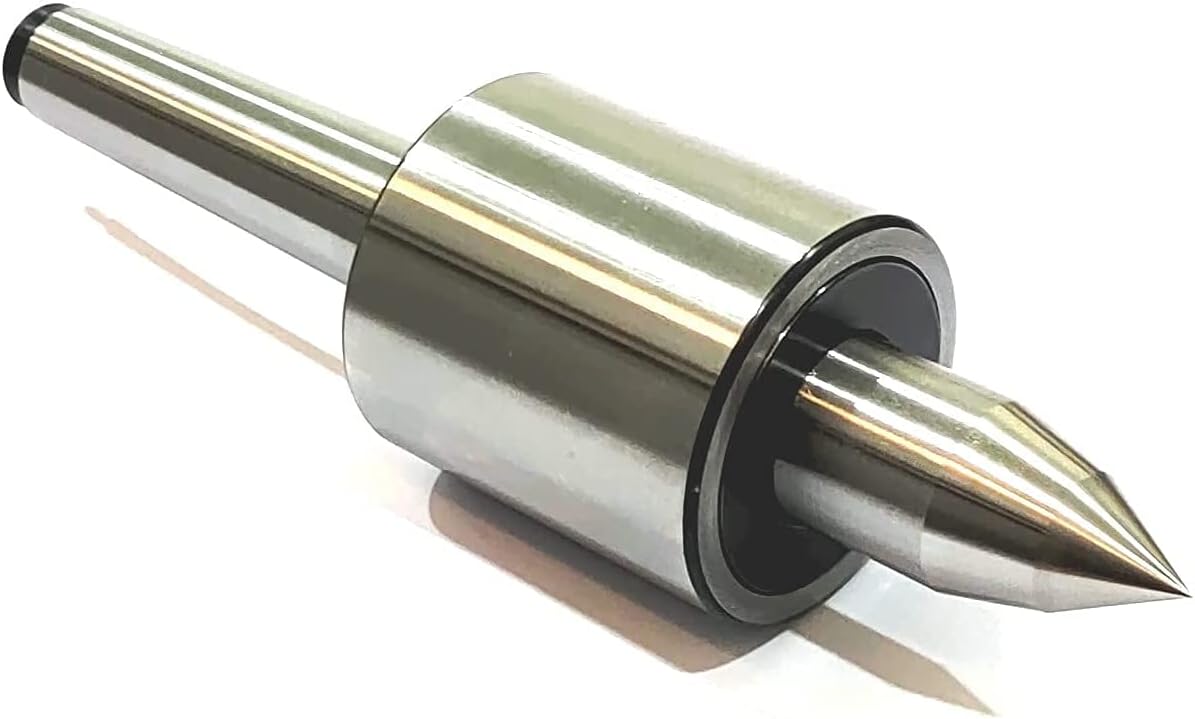

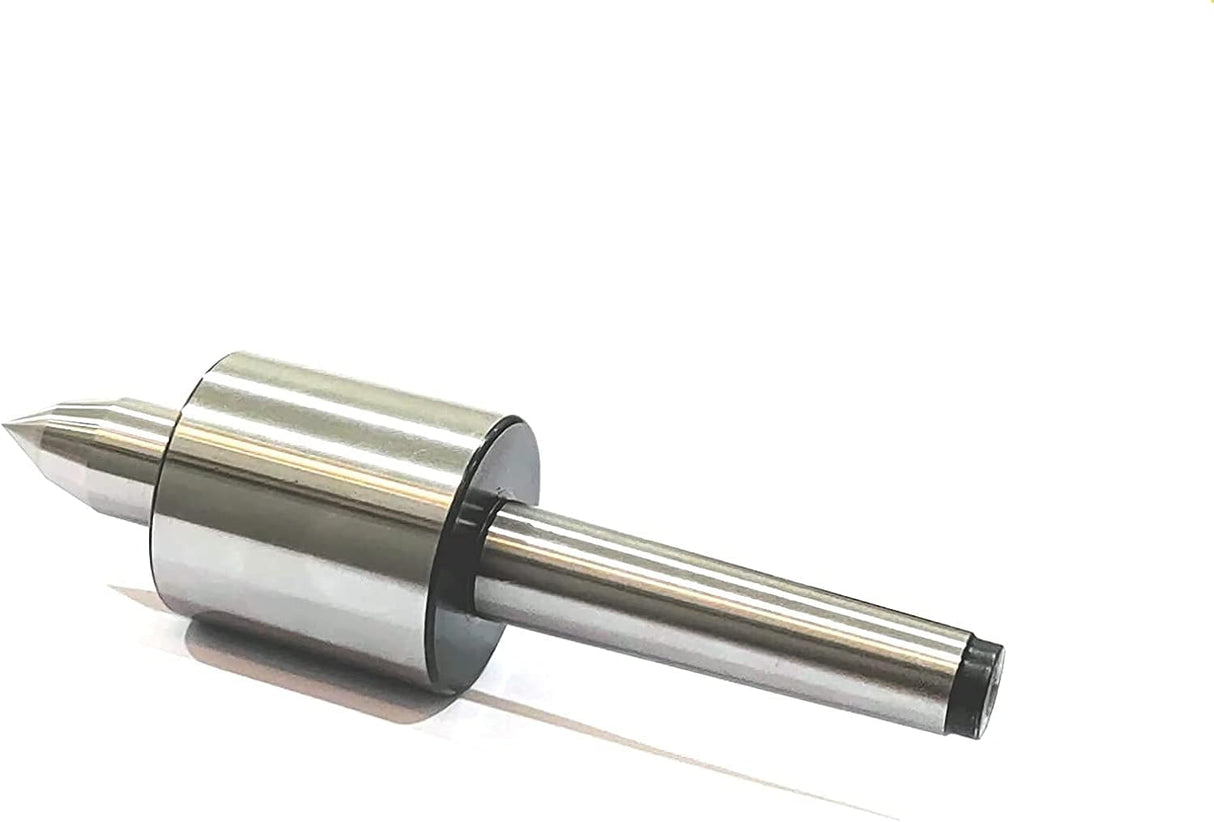

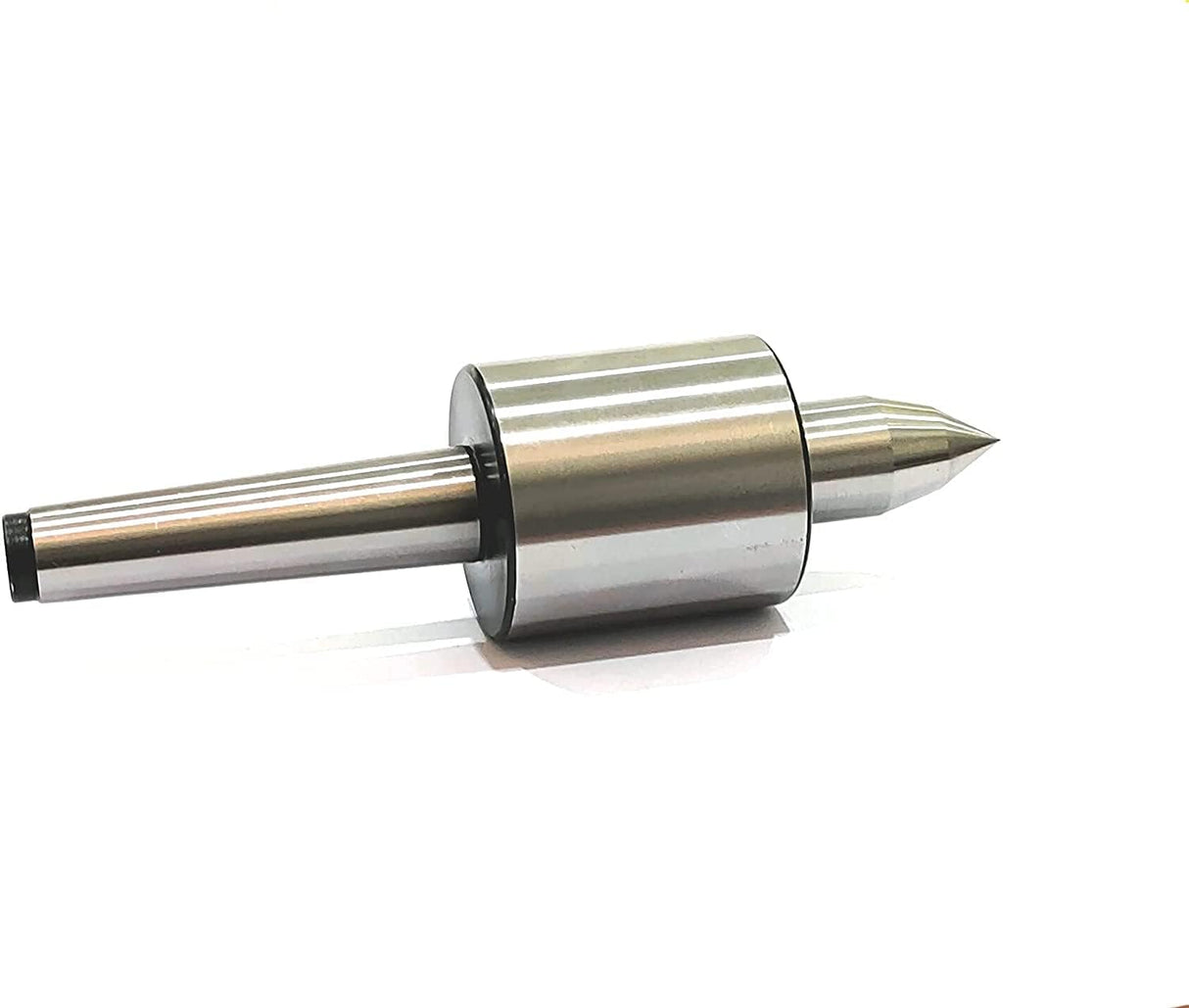

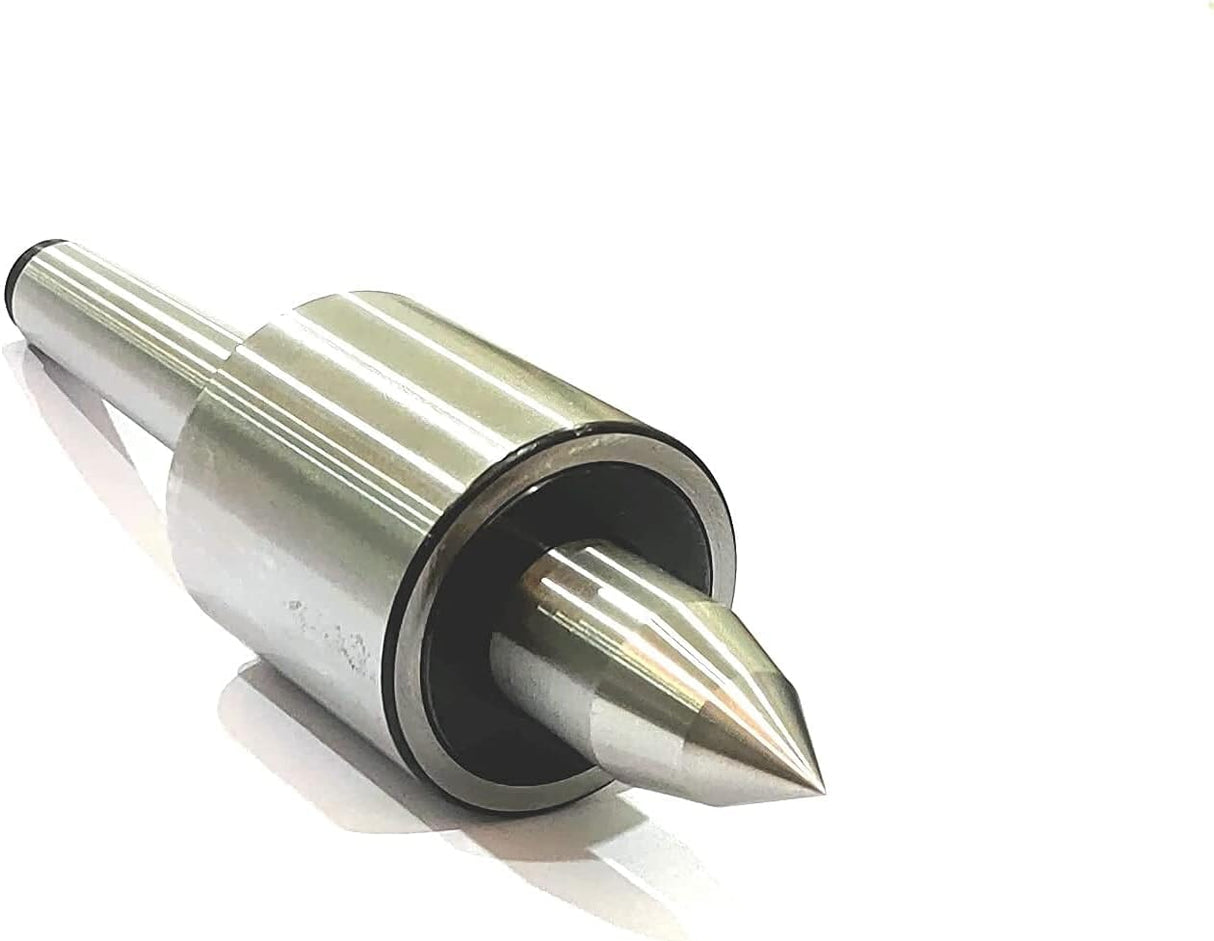

Double Bearing Lathe Pipe Cum Revolving Center Plain Body- 2MT (Under 5 Microns Runout)

Use of product- A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.

• Type: Double Bearing Lathe Pipe Cum Revolving Center
• Runout: Under 5 microns
• Bearings:
  • 1 Ball Bearing
  • 1 Taper Bearing
• Body Diameter: 50 mm
• Bearing Body Case Length: 58 mm
• Overall Length (OAL): 200 mm
• Shank: MT3 and MT2
• Body Material: Alloy steel grade EN8D
• Quill/Point Center Material: EN31 steel
• Nose Design: Allows use as both a revolving/live center and a pipe center
• Pipe Capacity for Turning: 12 to 28 mm

Features:

1. Precision and High Quality:

   • Designed with double bearings for enhanced precision and durability.
   • Maintains a runout of under 5 microns, ensuring high accuracy during operation.

2. Material and Construction:

   • The body is constructed from alloy steel grade EN8D, known for its strength and toughness.
   • The quill/point center is made from EN31 steel, providing high wear resistance and durability.

3. Versatile Usage:

   • Unique nose design allows the tool to be used as both a revolving/live center and a pipe center.
   • Suitable for turning pipes with a diameter range of 12 to 28 mm.

4. Bearing Quality:

   • Equipped with Z type (covered) bearings.
   • These bearings are designed to lock and seal grease inside, even when it melts at high temperatures during operation, ensuring consistent performance and longevity.
