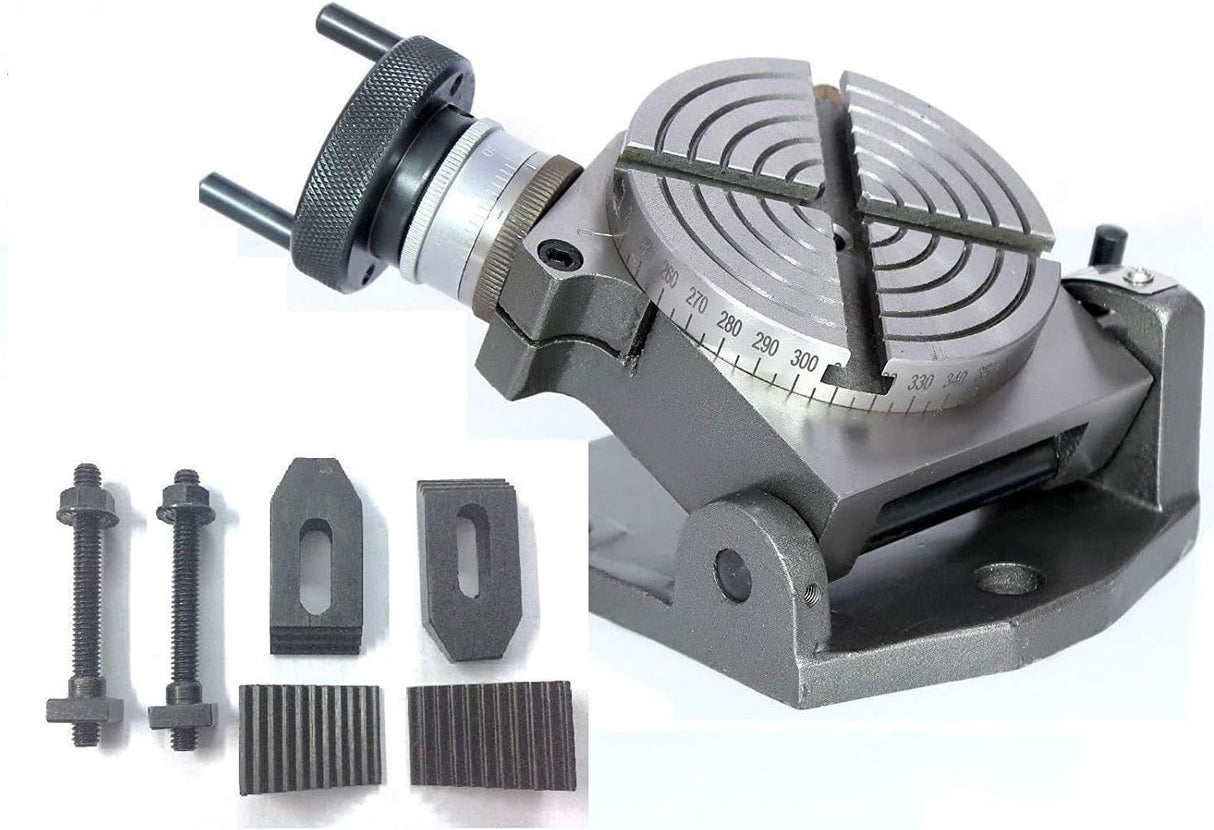

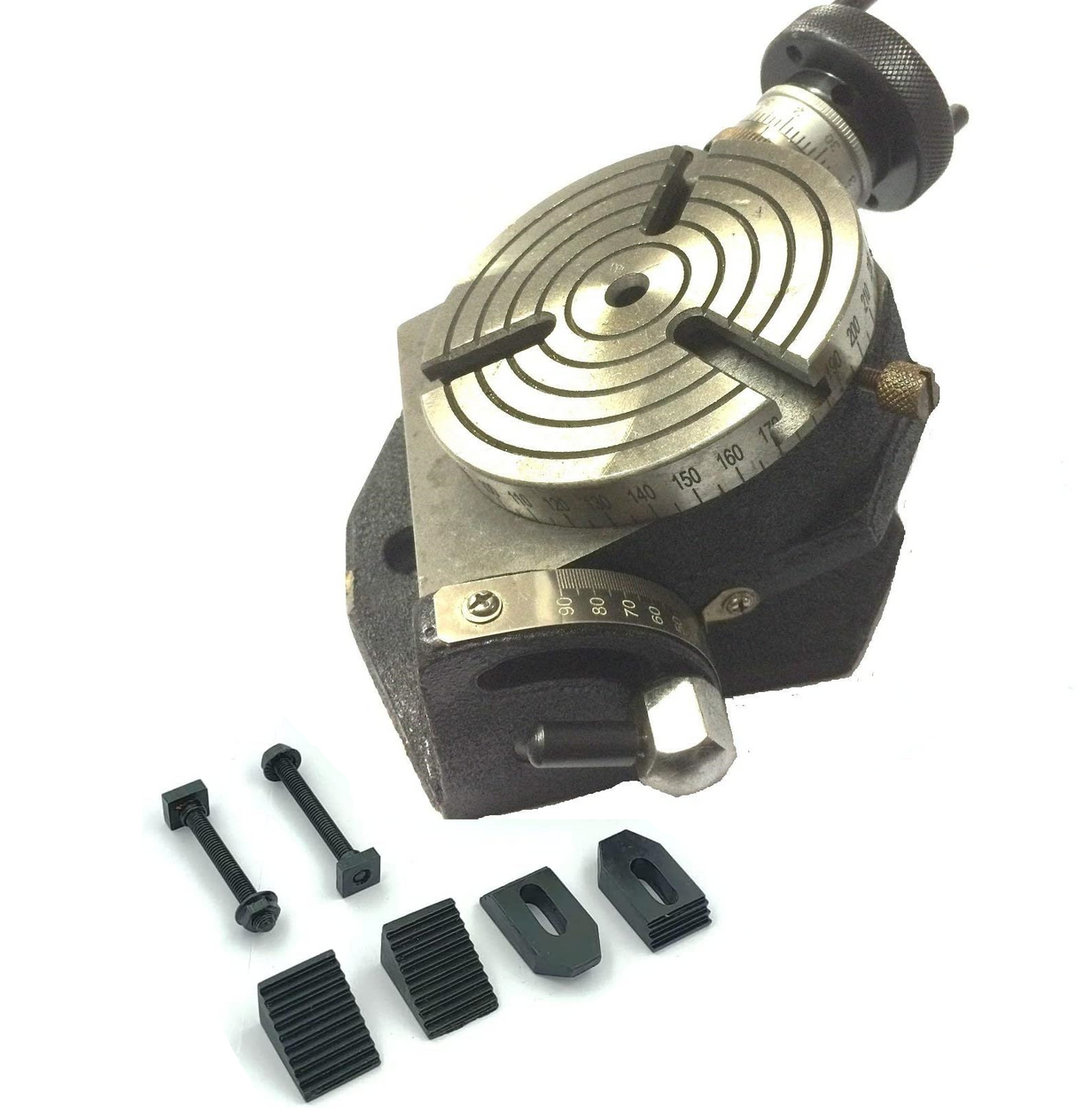

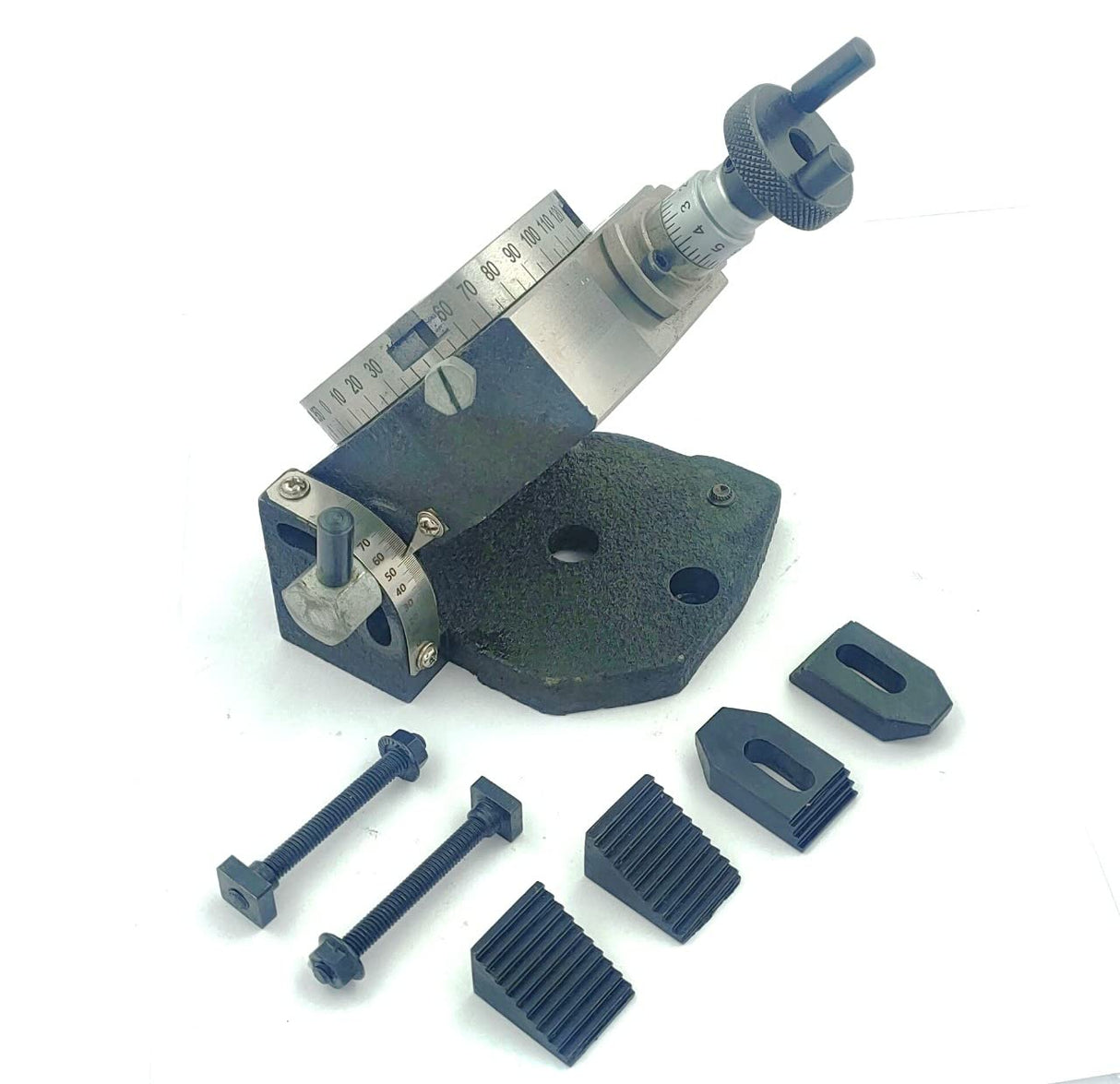

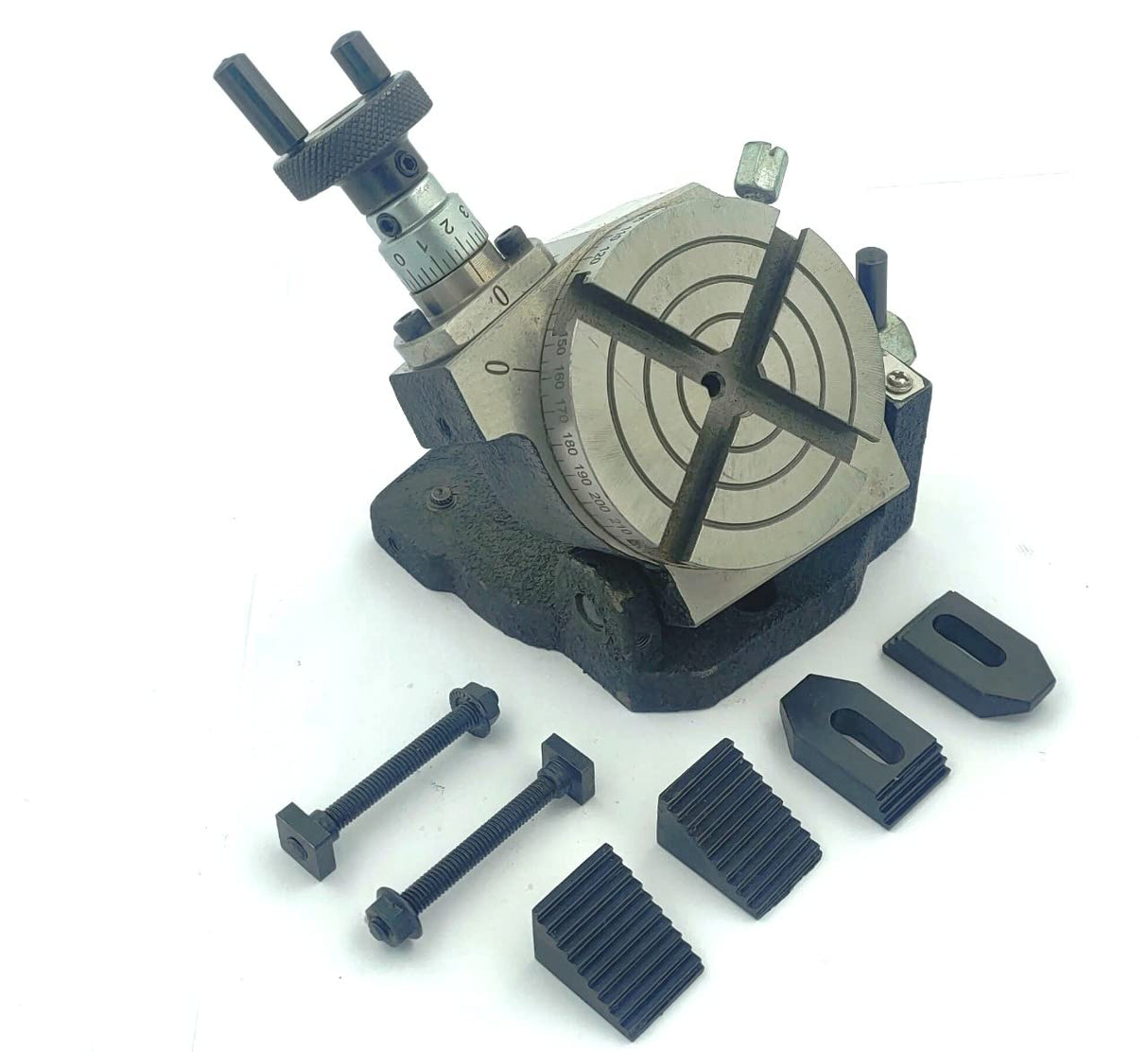

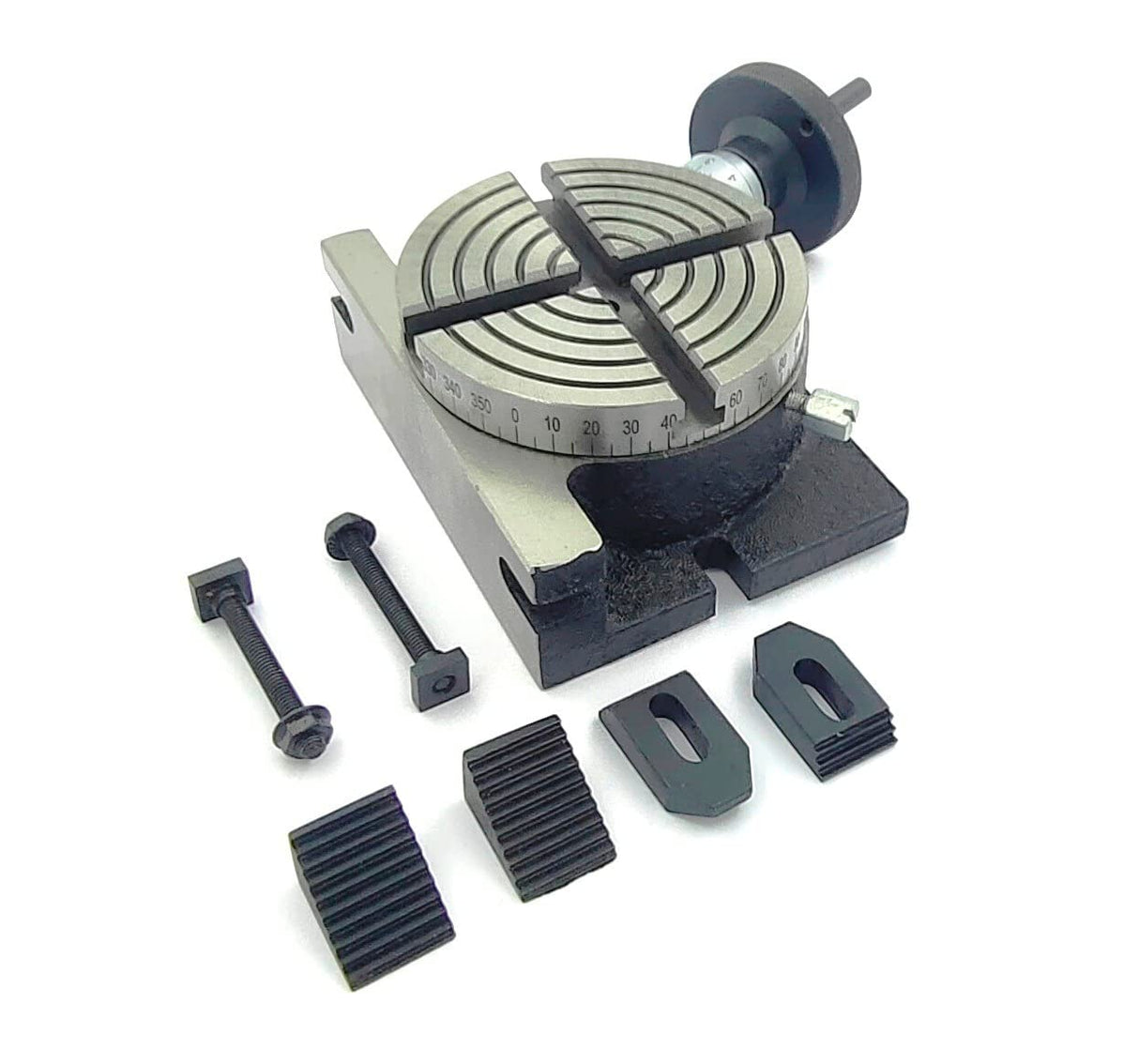

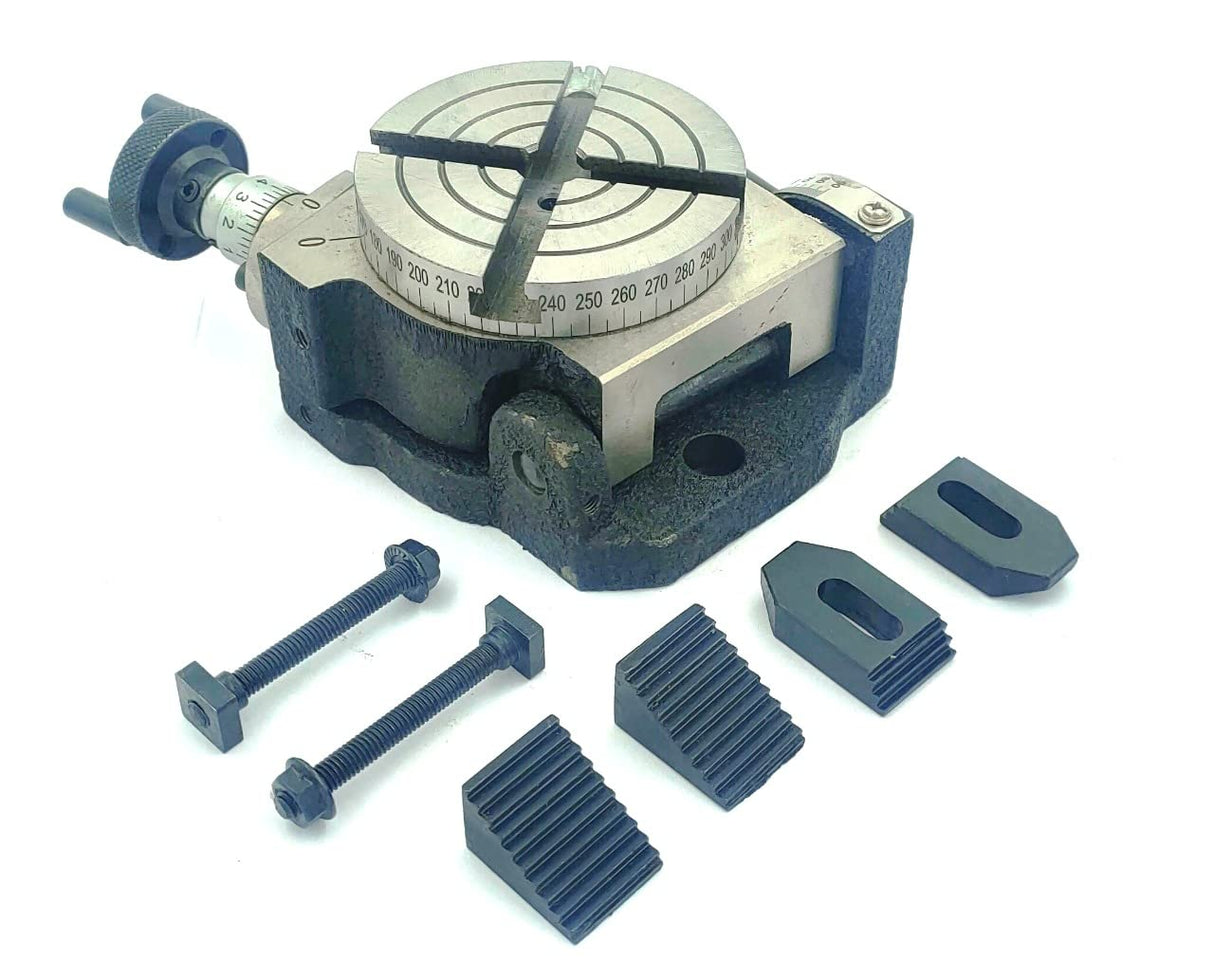

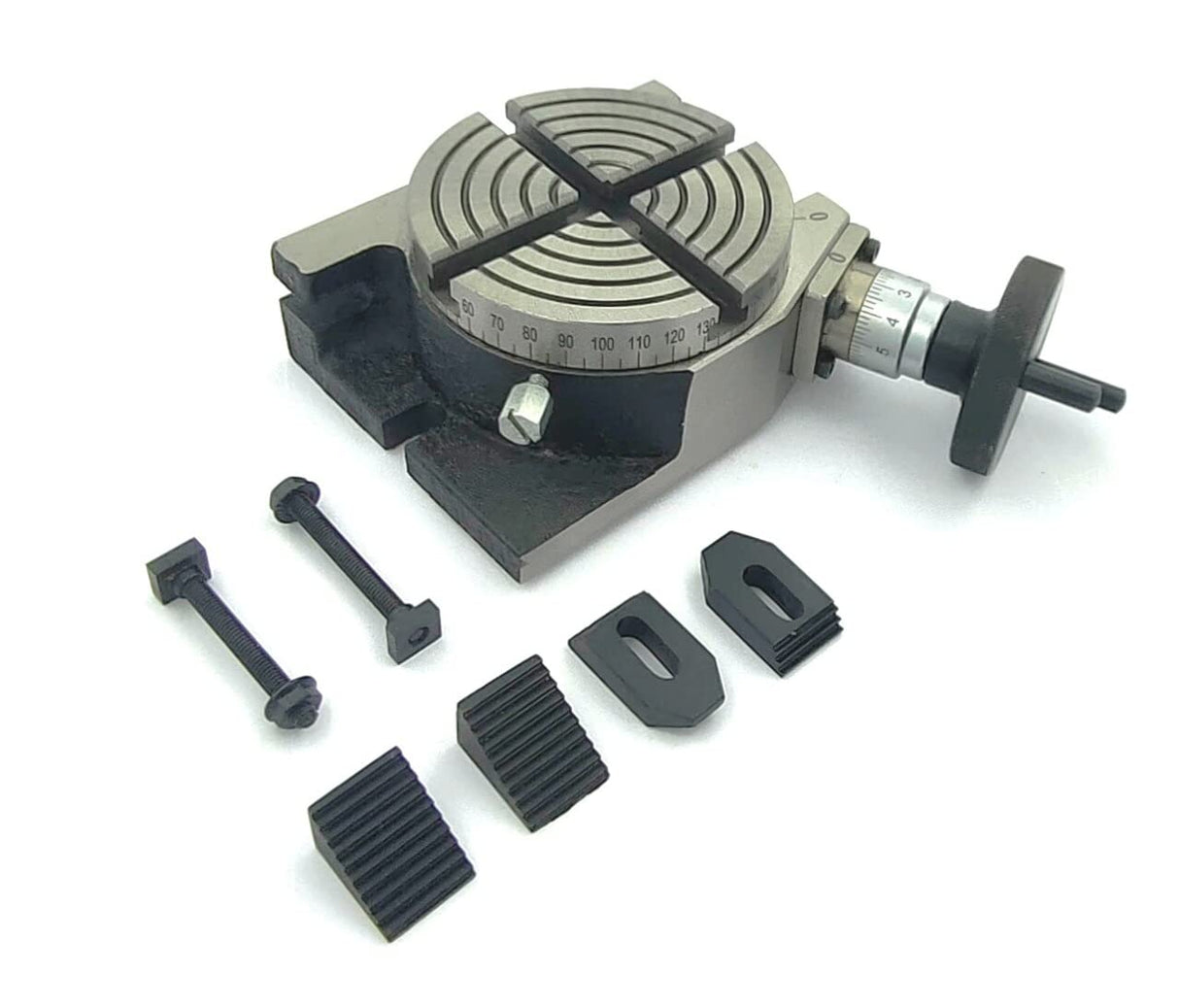

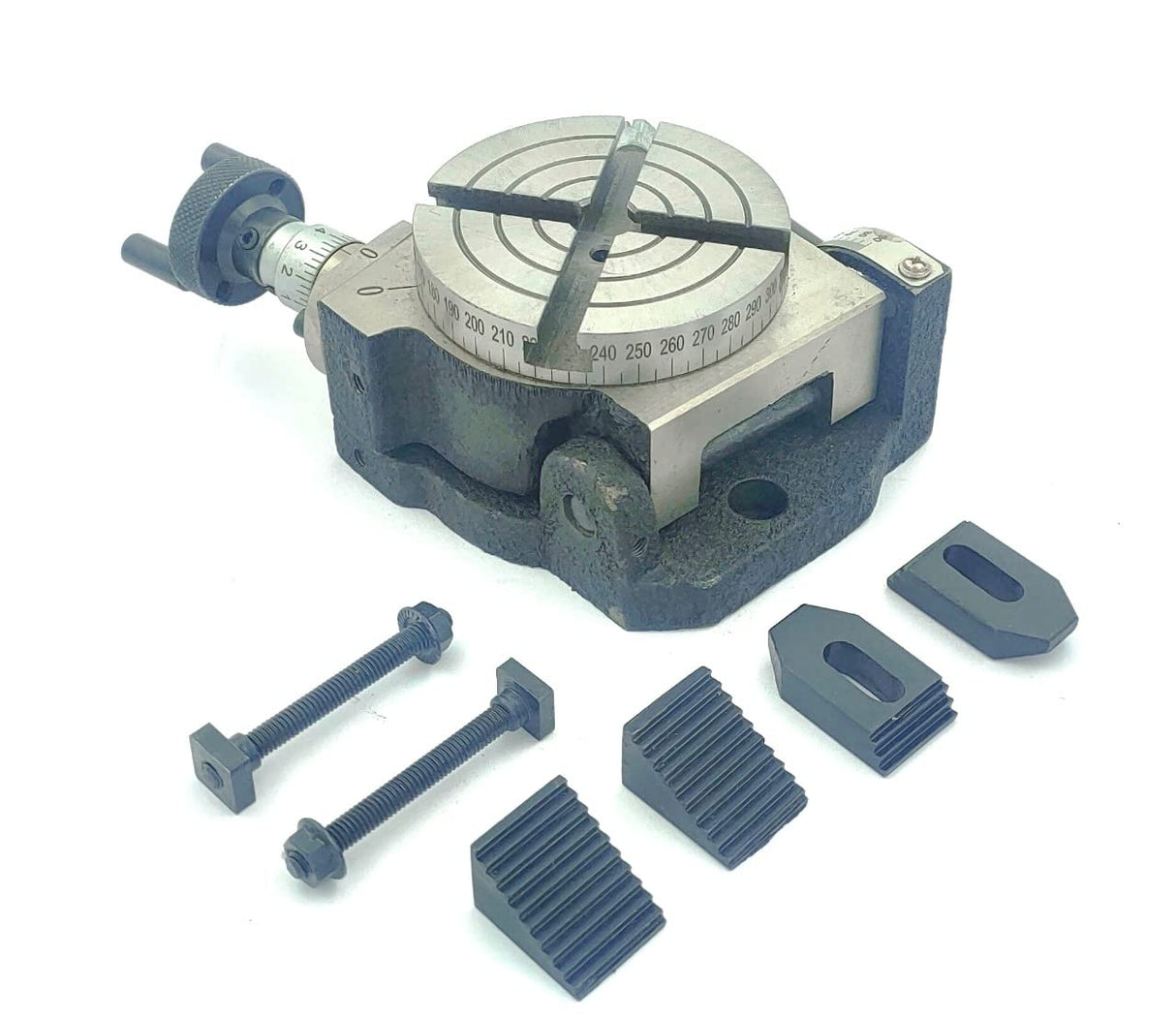

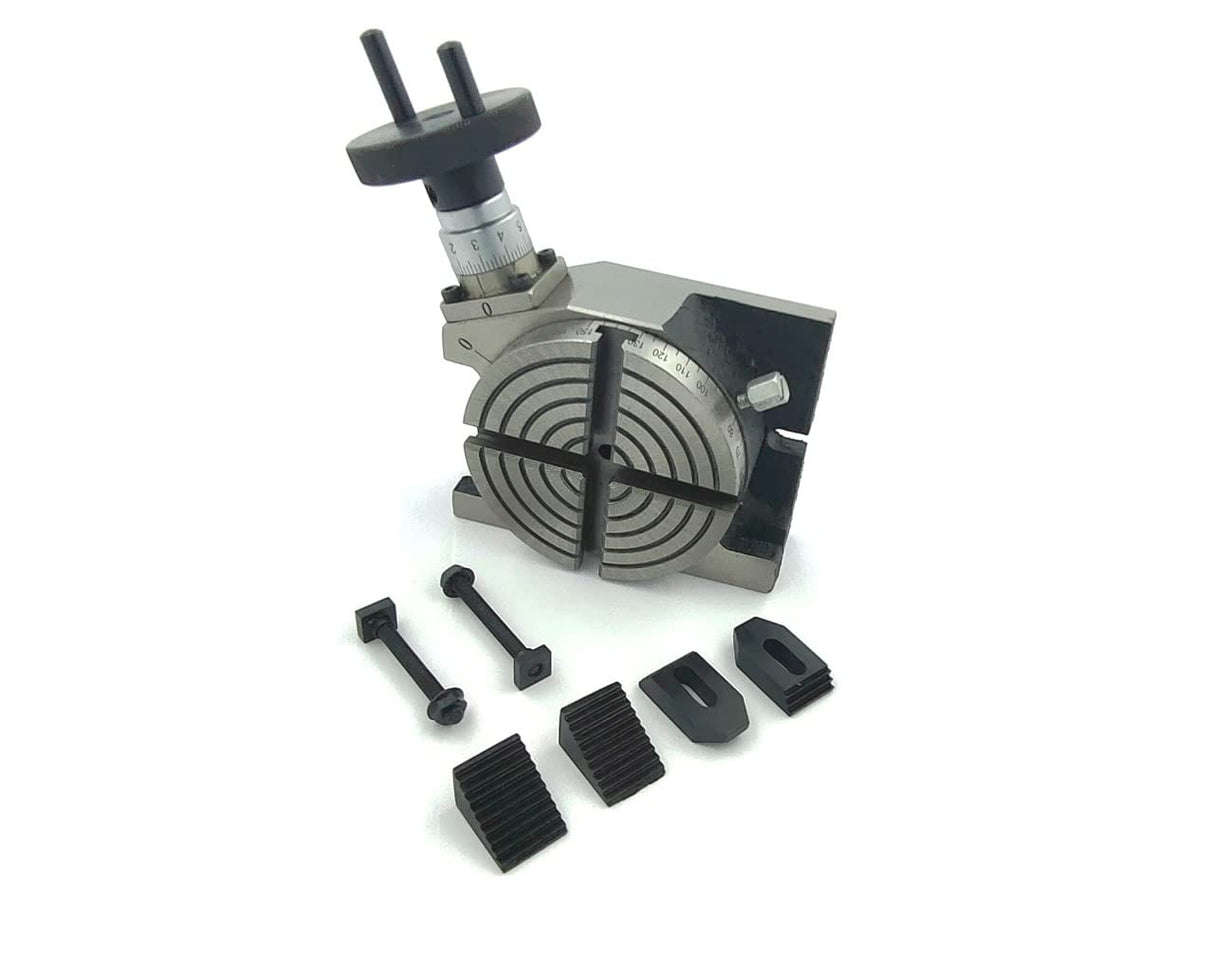

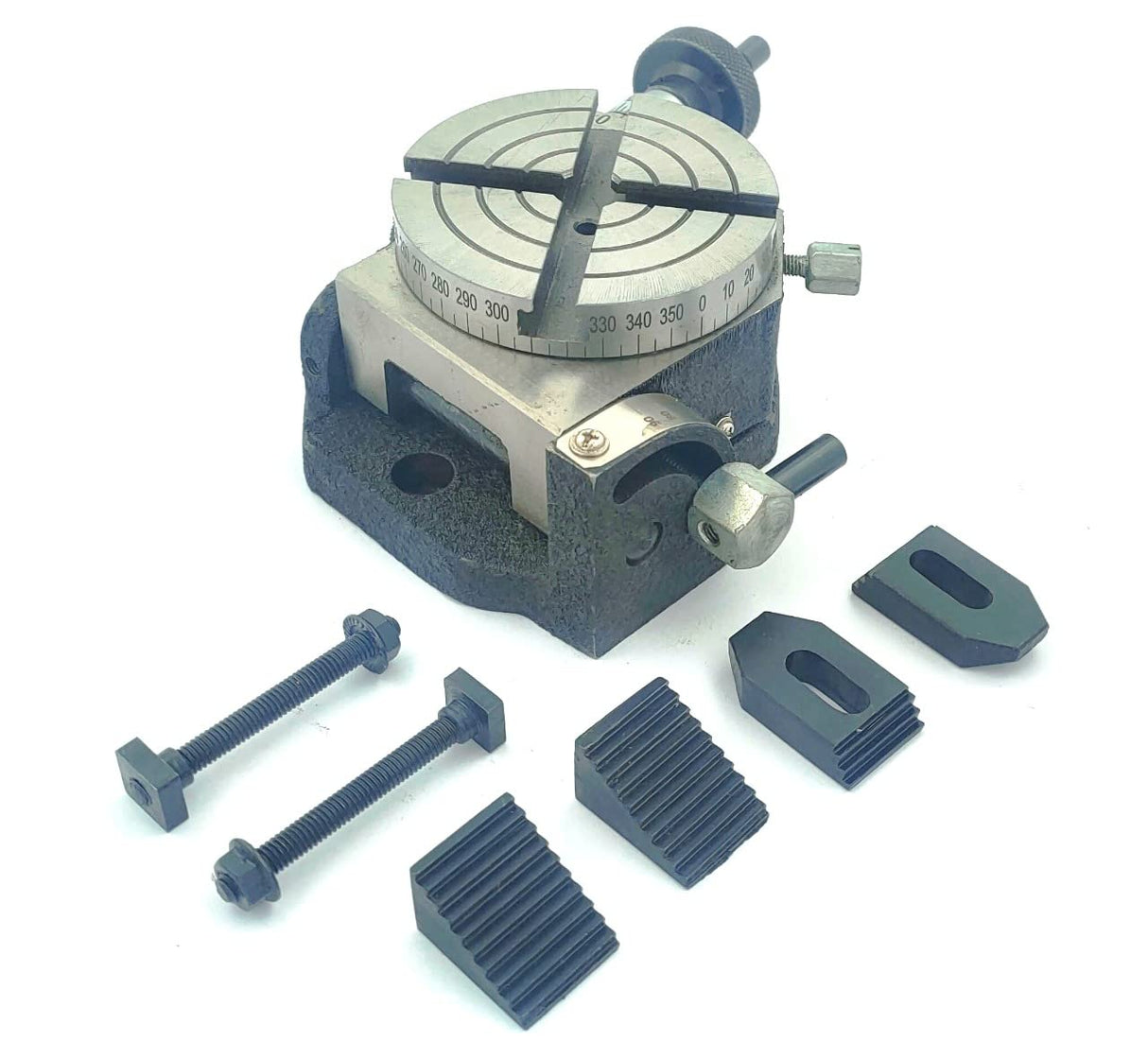

Horizontal Vertical 4" Inch II 100 mm Rotary Milling Indexing Table with M6 Clamp Kit
Horizontal Vertical 4" Inch II 100 mm Rotary Milling Indexing Table with M6 Clamp Kit - Regular 4 slot is backordered and will ship as soon as it is back in stock.
Care information
Care information
All tools should be kept clean and dry after use to prevent dust, debris, and rust. Always wipe tools with a clean cloth and remove any metal chips, oil, or dirt.
Apply light lubrication or anti-rust oil to metal parts when necessary to protect them from corrosion.
Tools should be stored properly in toolboxes, organizers, or protective cases to prevent damage and maintain their condition.
Avoid dropping tools or applying excessive force, as this may damage precision parts and cutting edges.
Regularly inspect tools for wear, cracks, or other damage, and repair or replace them if needed.
Always use tools only for their intended purpose to ensure safety and extend their lifespan.
Keep tools in a dry and safe working environment, and follow proper safety practices, including wearing protective equipment when required.
Delivery and Shipping
Delivery and Shipping
What is the dispatch time after placing an order?
We usually ship your order within 1–2 working days from the date of order confirmation. Once dispatched, you will receive a real-time tracking AWB through our delivery partners such as Xpressbees, Delhivery, Ekart, DTDC, Bluedart, Ecom, and Shadowfax.
Delivery usually takes 7–10 working days within India. For international shipping, delivery takes 8–12 working days.
Is the inventory readily available?
Yes, we only sell products that are available in ready stock, ensuring immediate dispatch for our valued customers.
What is the condition of the items being shipped?
All items listed on our website are brand new, unused, and shipped in original packaging.
How do I return an item purchased from your store?
The return process is simple and hassle-free. Please refer to our Return / Exchange / Refund Policy page for complete details.
Can I send an order to another address?
Yes, you can ship your order to an address other than your registered one. You can enter the new shipping address during checkout, or email us immediately after placing the order (before dispatch).
Horizontal Vertical 4" Inch II 100 mm Rotary Milling Indexing ...
Horizontal Vertical 4" Inch II 100 mm Rotary Milling Indexing Table with M6 Clamp Kit - Regular 4 slot is backordered and will ship as soon as it is back in stock.
Description
Description
A rotary table is a precision tool used predominantly in metalworking, particularly in machining operations like milling and drilling. Its primary function lies in enabling machining at precise angular intervals around a fixed point, commonly referred to as indexing. This capability facilitates the creation of intricate geometries, circular features, and multi-sided machining without the need for manual repositioning of the workpiece.
A clamp kit for a rotary table is used to secure workpieces onto the rotary table during machining operations. Rotary tables are often used in machining setups to enable circular cutting, hole drilling, and other operations around a fixed axis of rotation.
-
Table Diameter: 4 inches (100 mm)
This size is ideal for handling small to medium-sized workpieces, offering a good balance between compactness and functionality. -
360-Degree Graduation:
The table is graduated a full 360 degrees, allowing for precise control and positioning of the workpiece. The clear markings ensure easy and accurate angle setting for all your milling tasks. -
Worm Gear Ratio: 1:36
The gear ratio means that one full rotation of the handle turns the table by 10 degrees, providing fine control over the movement and ensuring precision in every operation. -
Vertical Position Center Height: 2-1/16" (50 mm approx)
The center height in the vertical position is 2-1/16 inches, which aligns perfectly with the smaller milling machine setups, offering versatility in workpiece positioning. -
Handwheel Graduations:
The handwheel is graduated in divisions of 10 minutes, allowing for highly detailed adjustments. The scale can also be set to zero, making it easy to track and repeat your adjustments for consistent results. -
Mounting Flexibility:
The Regular model can be mounted in both horizontal and vertical positions, enhancing its versatility for a wide range of applications. Whether you need flat or angled cuts, this rotary table can handle it with ease.
M6 Clamp Kit
- This M6 clamp kit is designed for use with 3" or 4" rotary tables.
- Includes a set of clamps, bolts, nuts, and T-slot nuts.
- Compatible with rotary tables featuring M6 T-slots or mounting holes.
- Allows for secure fastening of workpieces onto the rotary table during machining operations.
- Made of tool steel for durability and reliability.
- Provides essential holding power to maintain precision and accuracy.
- Ideal for use in machining setups requiring precise rotary table positioning.
