Steel Dividing Indexing Plates for Rotary Tables

Rs. 7,000.00 Rs. 7,800.00

Shipping calculated at checkout.

UK Tool Supplies | SKU: 20-RT-802

Size

Set of 3 for for 3" I 4" Rotary Tables Set of 3 for HV4 I 5 I 6 Rotary Tables Set of 2 for HV8 I 10 I 12 Rotary Tables

If a product is not available in our UK warehouse, it will be shipped from India. Delivery may take 8–14 days.

Care information

All tools should be kept clean and dry after use to prevent dust, debris, and rust. Always wipe tools with a clean cloth and remove any metal chips, oil, or dirt.

Apply light lubrication or anti-rust oil to metal parts when necessary to protect them from corrosion.

Tools should be stored properly in toolboxes, organizers, or protective cases to prevent damage and maintain their condition.

Avoid dropping tools or applying excessive force, as this may damage precision parts and cutting edges.

Regularly inspect tools for wear, cracks, or other damage, and repair or replace them if needed.

Always use tools only for their intended purpose to ensure safety and extend their lifespan.

Keep tools in a dry and safe working environment, and follow proper safety practices, including wearing protective equipment when required.

Delivery and Shipping

What is the dispatch time after placing an order?

We usually ship your order within 1–2 working days from the date of order confirmation. Once dispatched, you will receive a real-time tracking AWB through our delivery partners such as Xpressbees, Delhivery, Ekart, DTDC, Bluedart, Ecom, and Shadowfax.
Delivery usually takes 7–10 working days within India. For international shipping, delivery takes 8–12 working days.

Is the inventory readily available?

Yes, we only sell products that are available in ready stock, ensuring immediate dispatch for our valued customers.

What is the condition of the items being shipped?

All items listed on our website are brand new, unused, and shipped in original packaging.

How do I return an item purchased from your store?

The return process is simple and hassle-free. Please refer to our Return / Exchange / Refund Policy page for complete details.

Can I send an order to another address?

Yes, you can ship your order to an address other than your registered one. You can enter the new shipping address during checkout, or email us immediately after placing the order (before dispatch).

Description

How it's works: When mounted onto a rotary table, which is a precision work holding device that allows for precise positioning of workpieces, the dividing plate helps in accurately dividing the rotation of the table into equal parts. This division is crucial for tasks like cutting gears, splines, or other components that require precise angular spacing or indexing.

Premium Quality Construction: Constructed from high-grade tool steel, ensuring durability and longevity for extended usage.
Precision Indexing: Engineered for precise division and indexing, allowing for accurate positioning of workpieces during machining operations.
Smooth Rotation: Facilitates smooth rotation on rotary tables, enabling seamless transitions between indexing positions.
Versatile Compatibility: Compatible with a wide range of rotary tables, ensuring versatility and adaptability for various machining setups.
Enhanced Machining Accuracy: Enables users to achieve fine increments and accurate divisions, enhancing overall machining precision.
Easy Installation: Designed for hassle-free installation, allowing users to quickly integrate the indexing plates into their rotary table setups.
Reliable Performance: Offers reliable performance under demanding machining conditions, ensuring consistent results with each use.
Professional Grade: Ideal for both professional machinists and hobbyists alike, providing professional-grade quality for diverse machining projects.

Tools Specification:

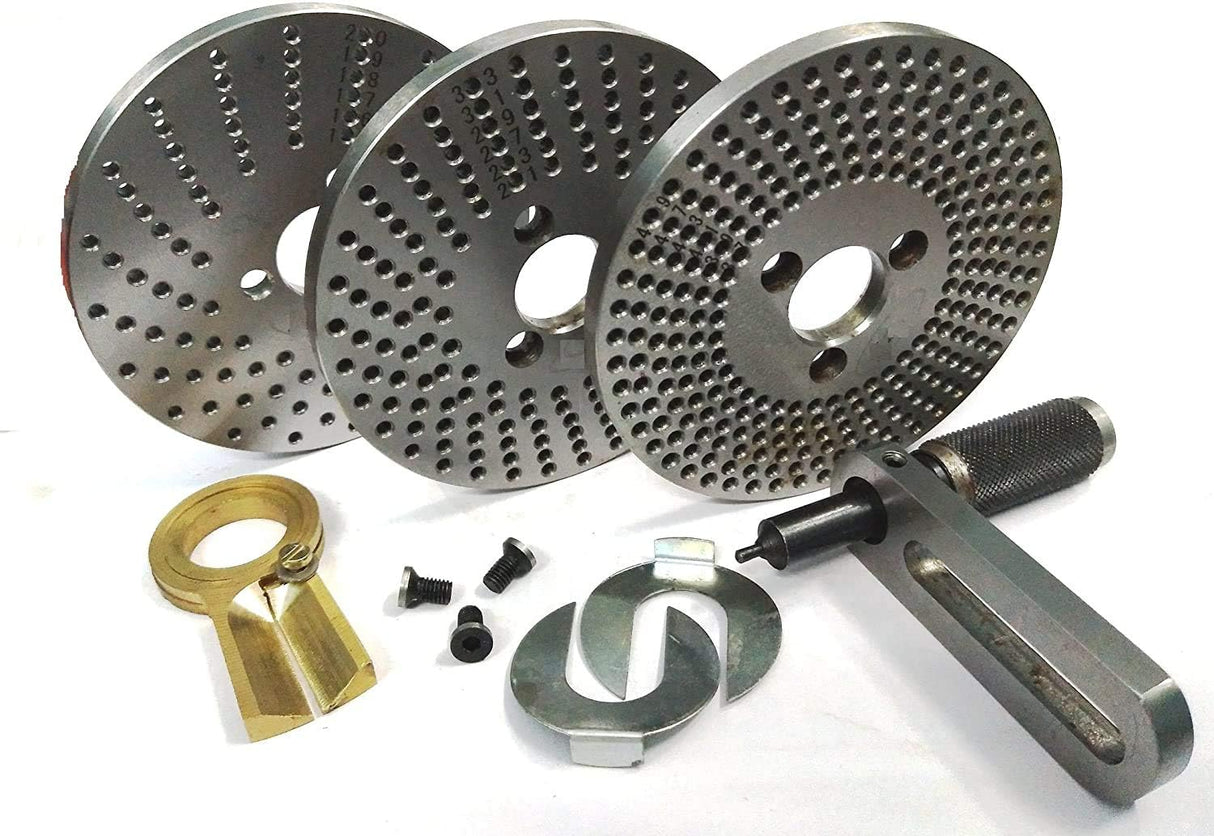

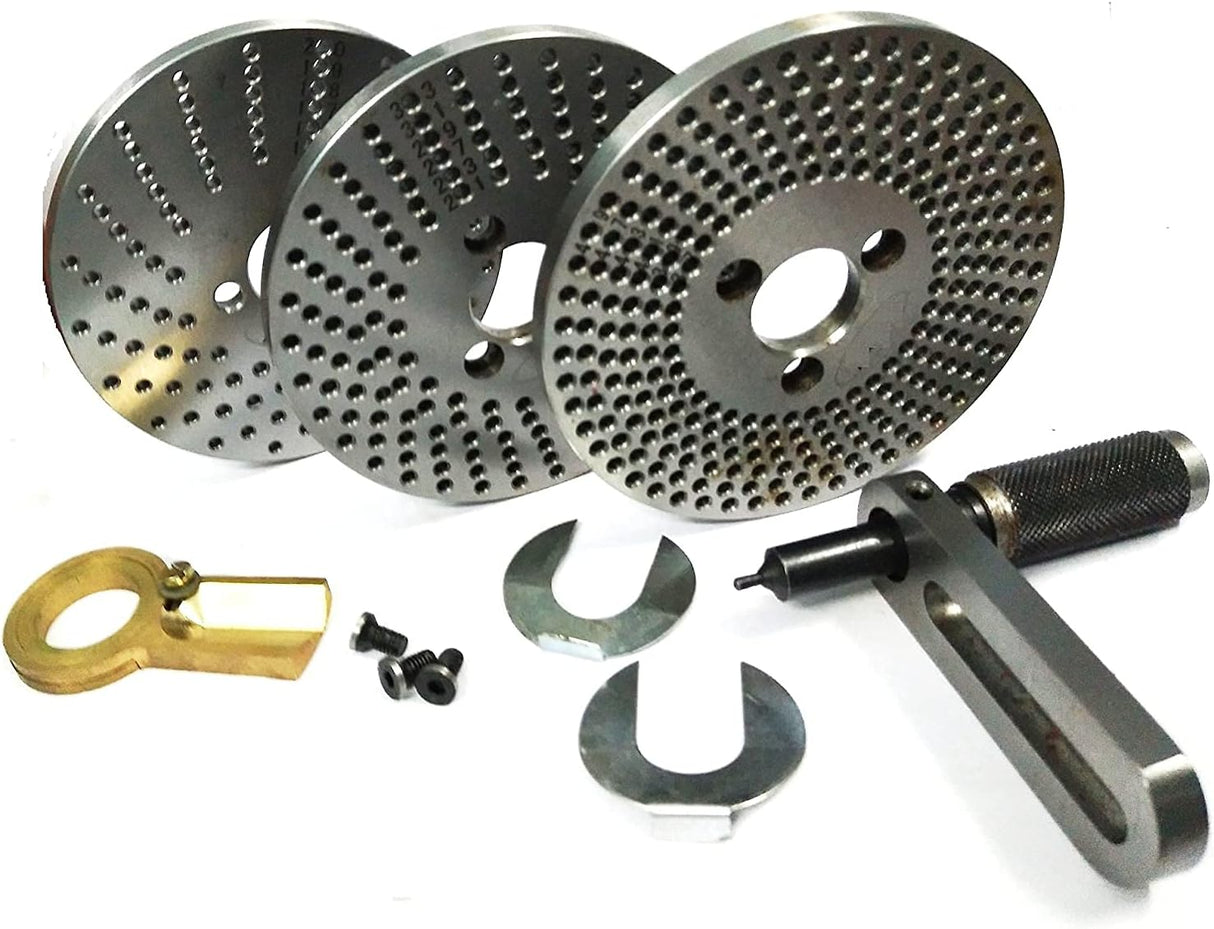

Dividing Plates Set for HV4 /HV6 Rotary Table:

Set Includes: 3 x Indexing Dividing Plate and accessories.
Diameter of the Plates is 100 mm. Centre Hole of the Plate is 21 mm. Thickness 7 mm
Plate 1 – 15, 16, 17, 18, 19, 20
Plate 2 – 21, 23, 27, 29, 31, 33
Plate 3 – 37, 39, 41, 43, 47, 49

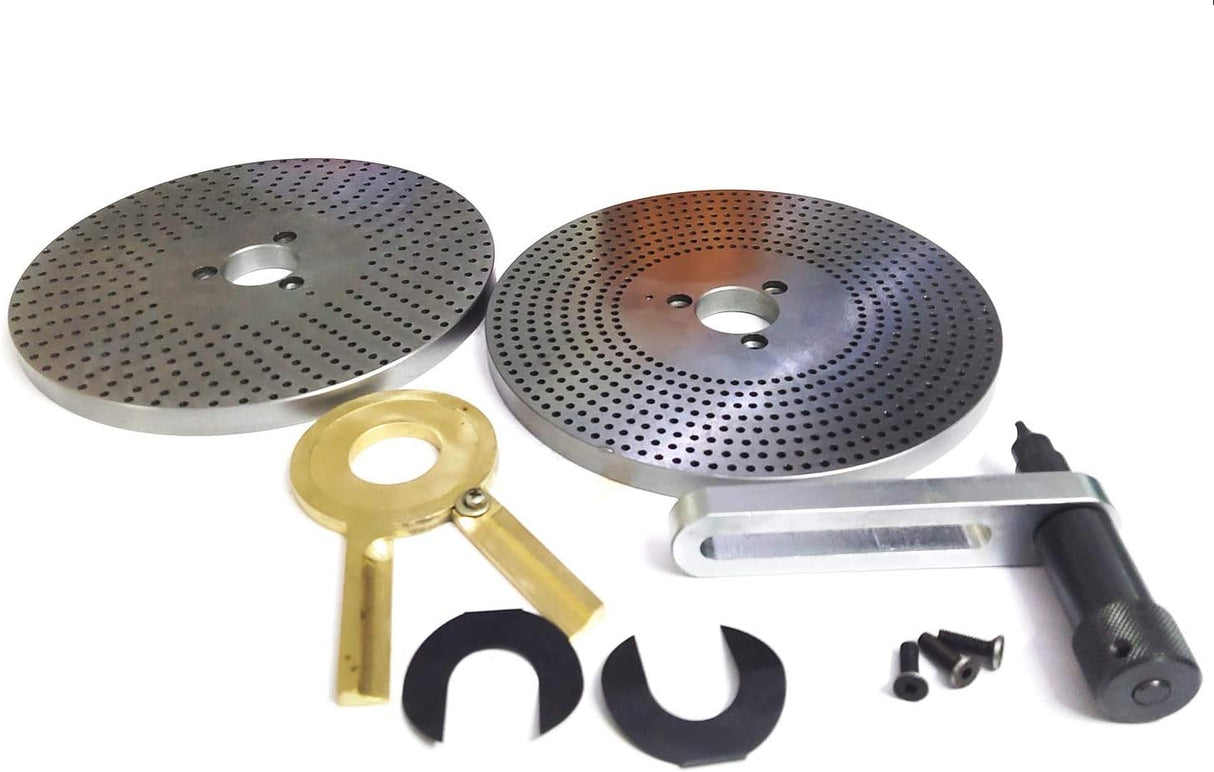

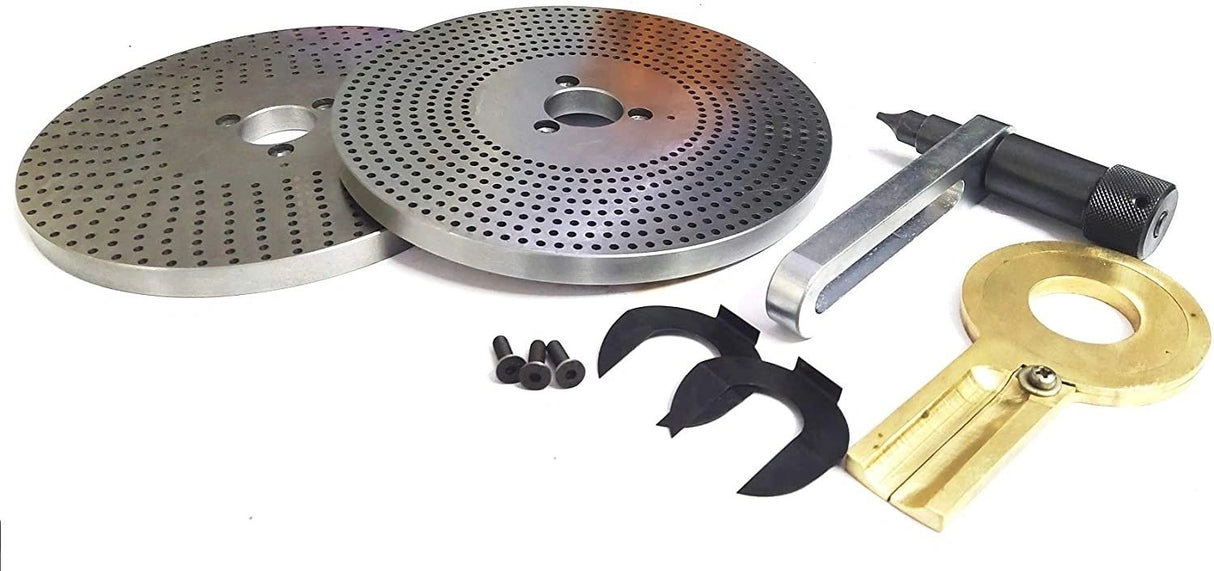

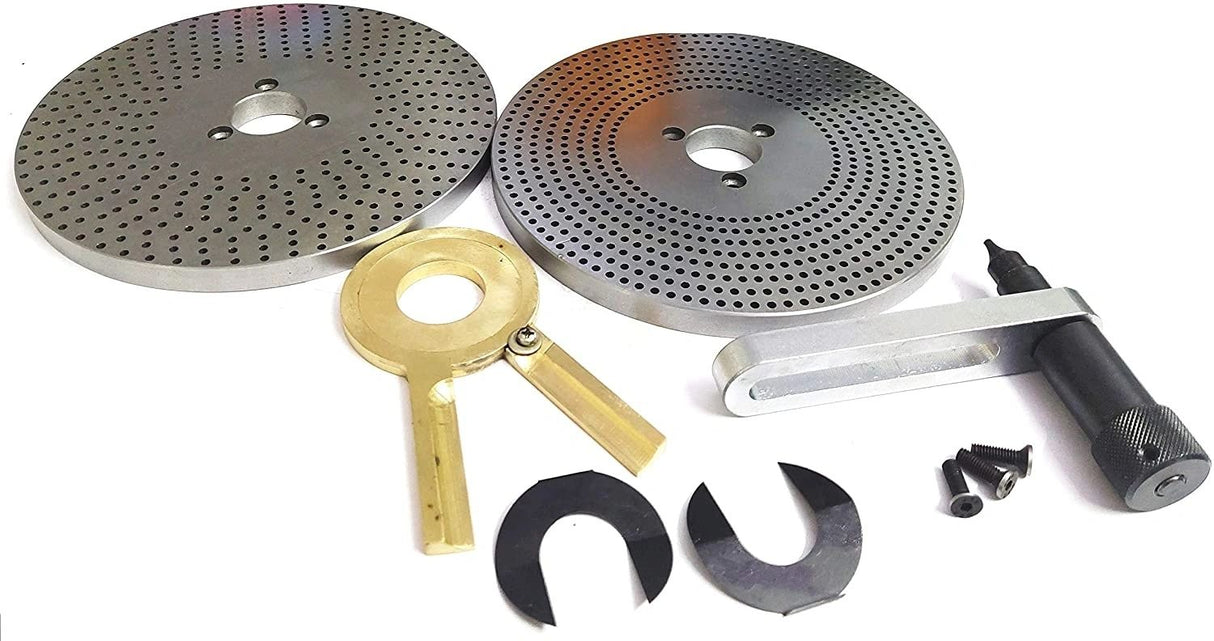

Dividing Plates Set for HV8 /HV10/ HV12/ HV14 Rotary Table:

Set Includes: 2 x Indexing Dividing Plate and accessories.
Diameter of the plate is 7" and its thickness is 0.47 " Inches (12 mm) approx. All required accessories are included as photograph. No manual is included, please note.
Plate A - 28, 32, 37, 39, 43, 46, 49, 53, 59
Plate B - 63, 69, 73, 79, 83, 89, 93, 99
