Combo Set of Lathe Knurling Tool Attachment for Precision Work

Description

A lathe knurling tool is, importantly, a device used to give the workpiece, typically metal, a textured surface. This process, known as knurling, aims to perform several functions: at first, providing a good grip by producing some sort of ridges on the surface in which the item would be easier to hold or operate; it is utilized for creating handles to tools and knobs in machinery where an item must be tightly held. Secondly, it may be decorative, enhancing the finished product's appeal. And also, in industry, this is sometimes used for identification, giving it a distinctive feel that helps distinguish similar parts. In use, the knurling tool is mounted on the lathe's tool post and pressed against the work as it rotates, stamping the desired pattern on its surface. Straight, diamond, or diagonal patterns can be created with various knurling wheels or by adjusting the tool setup.

Single Knurl - Linear Pitch - 1/2" x 1/2" x 4"

Made of Tool Steel - Holder Size : 1/2" x 1/2" x 4" (12.7 mm x 12.7 mm x 100 mm)
Knurl Dimension: 3/4" x 1/4" x 1/4" (19 mm x 6.35 mm x 6.35 mm)

Single Knurl - Linear Pitch - 3/4" x 3/4' x 5"

Made of Tool Steel - Holder Size : 3/4" x 3/4" x 5" (19 mm x 19 mm x 127 mm)
Knurl Dimension: 3/4" x 3/8" x 1/4" (19mm x 9.52mm x 6.35mm)

Double End Wheel (Linear Pitch)

Holder Size (In Inches): 1/2 x1/2 x 5" Holder Size (In mm): 12.7 x 12.7 x 125 mm
Knurl Dim. (In Inches) : 3/4 x 1/4 x 1/4 " Knurl Dim. (In mm) : 19 x 6.35 x 6.35 mm

Pivot Head-2 Wheel

Holder Size : 1/2 x 1/2 x 4-1/2" Inch ( 12.7 x 12.7 x 115 mm), Knurl Dimensions: 3/4" Diameter x 3/8 Width x 1/4" (Hole) Inches (19 x 9.52 x 6.35 mm)
Comes fitted with Hardened knurls , made out of quality alloy steel grade of EN31

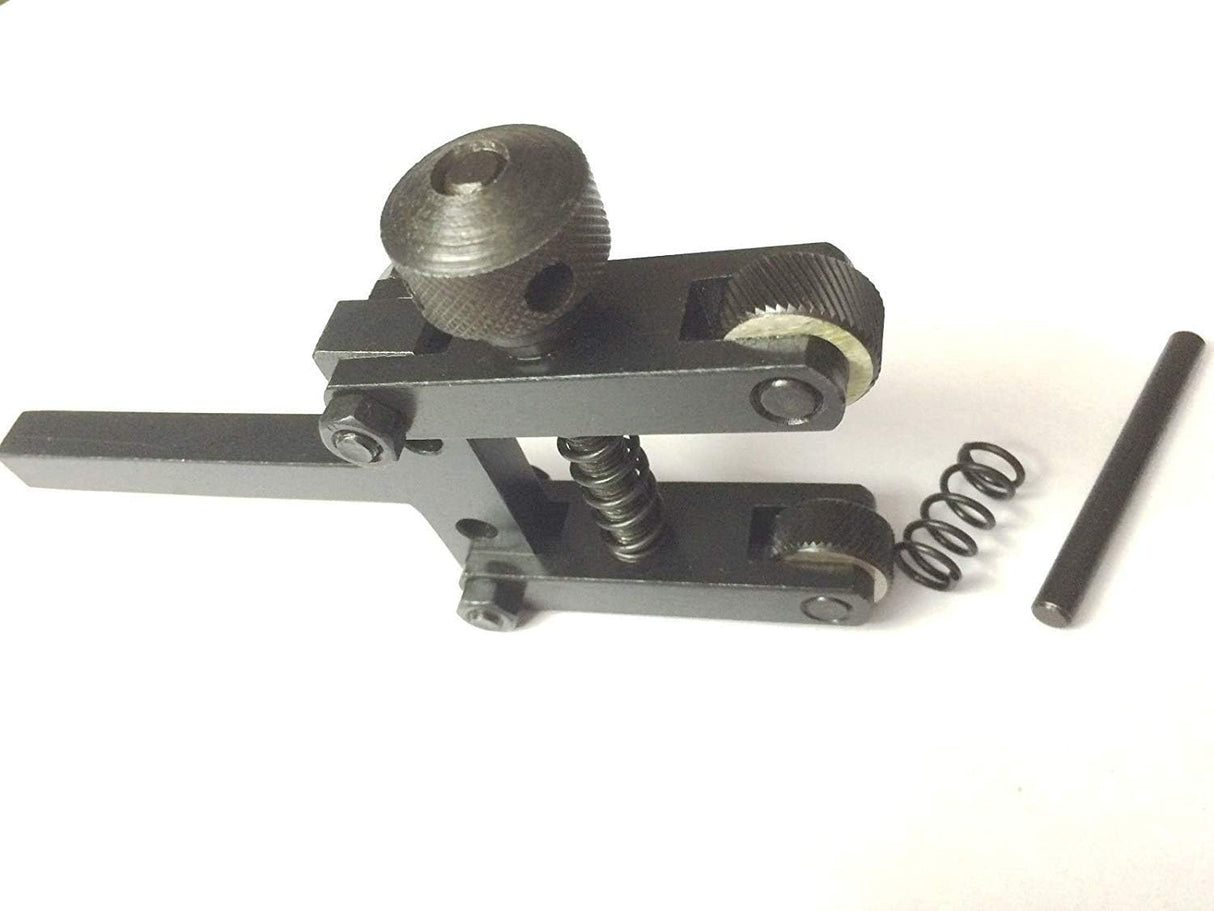

H Type Knurling Tool 2" Inch/ 50 mm

Adjustable H Type Spring loaded clamp type knurling tool. Maximum Capacity- 2" ( 50 mm) Shank size 3/8" Square x 3-1/8" Inch Long II Knurl Dimensions- 3/4" (Diameter) x 3/8" (Wide) x 1/4" (Hole) Inches
A spare smaller rod with an extra spring is to reduce the capacity of the knurling tool by re-bolting the knurling arms in the lower inner holes.

Knob Knurling Tool (3-25 mm)

Holder Size (Inch) : 3/8" x 3/8" Square Holder Size x 3" Long Tail Holder Size in MM : 16 x 9.5 x 75 mm.
Knurl Dim.(mm) : 19 x 9.5 x 6.35 mm Knurling Capacity (mm) : 3-25 mm. Pitch: Medium
Clamp Type Knurling Tool with knob. This design helps reducing the load on the lathe spindle bearings compared to any other standard knurling tool

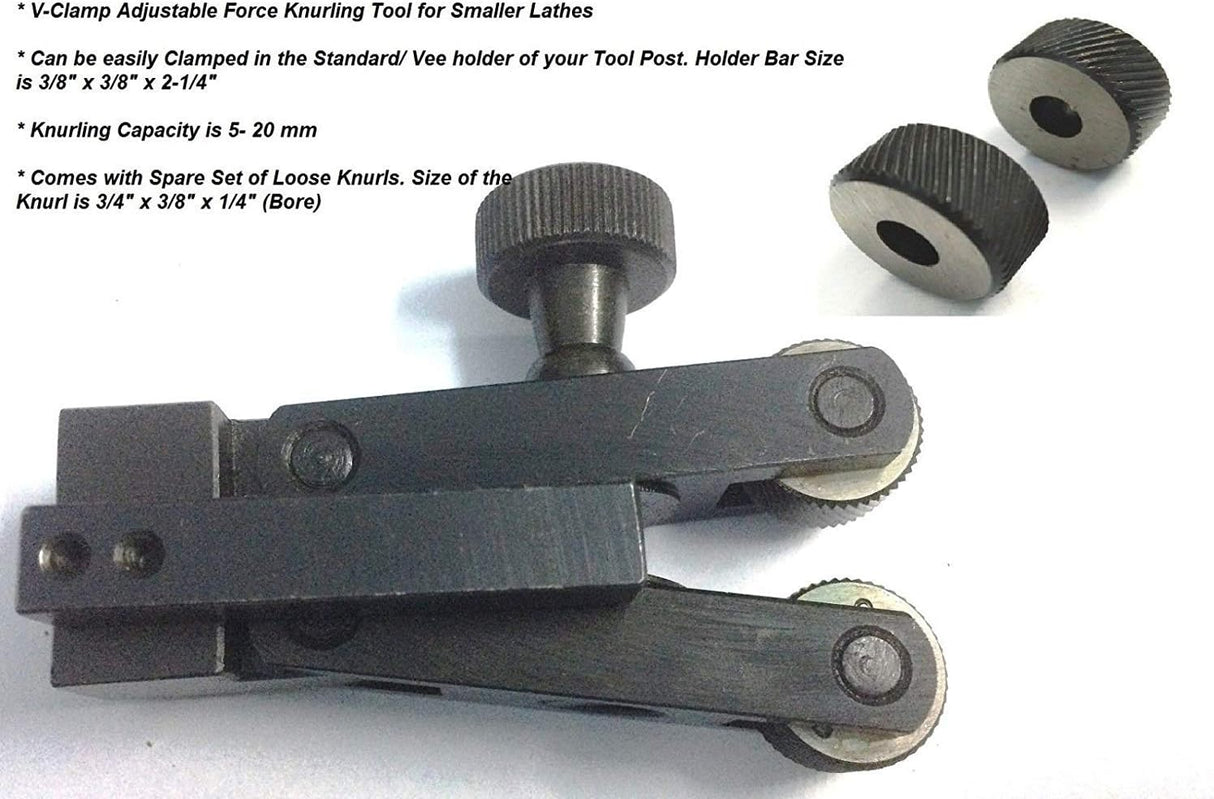

V Knurling Tool (5-20 mm)

Holder size : 3/8" x 3/8" x 2 -1/4" Paired with LH & RH diagonal lines to form a Diamond Pattern.
Hardened EN31 Grade Tool Steel Knurls of size - 3/4" x 3/8" x 1/4" bore.
Can be clamped in Standard Holder of the Quick change tool post on the lathe.
Quality Tool Steel Spring Action Clamp Type Knurling Tool Capacity 5-20 mm

6 Wheel -Multi Pitch Pattern

Holder Size : 3/8 x 7/8 x 5-1/2" Inches ( 9.5 x 22 x 140 mm ). Knurl Size : 3/4" x 3/8" x 1/4" (Bore)
This knurling tool has 3 set of knurl pair of different pitches which gives different pattern as required
Comes fitted with Hardened knurls , made out of quality alloy steel grade of EN31

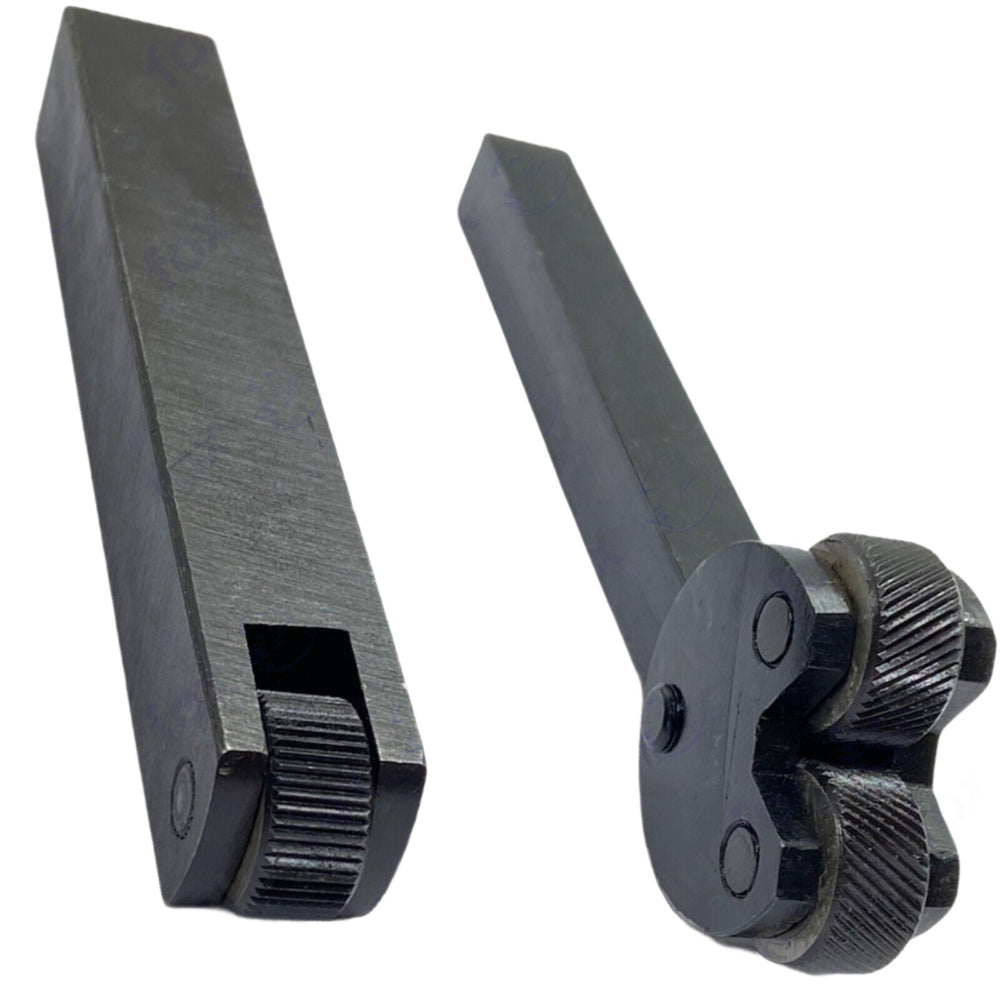

Combo 1- (Set of 2) 1 Wheel and 2 Wheel Pivot Head

This combo contains one single wheel knurling tool (3/4" x 3/4" x 5") and tool and 2 wheel pivot head knurling tool

Combo 2- (Set of 2) Pack of 2 Pc with Spare Knurls

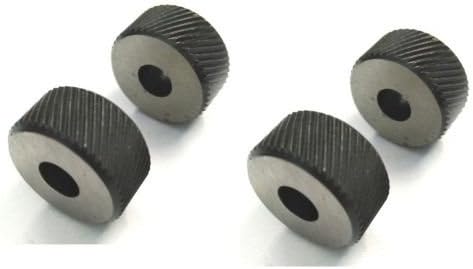

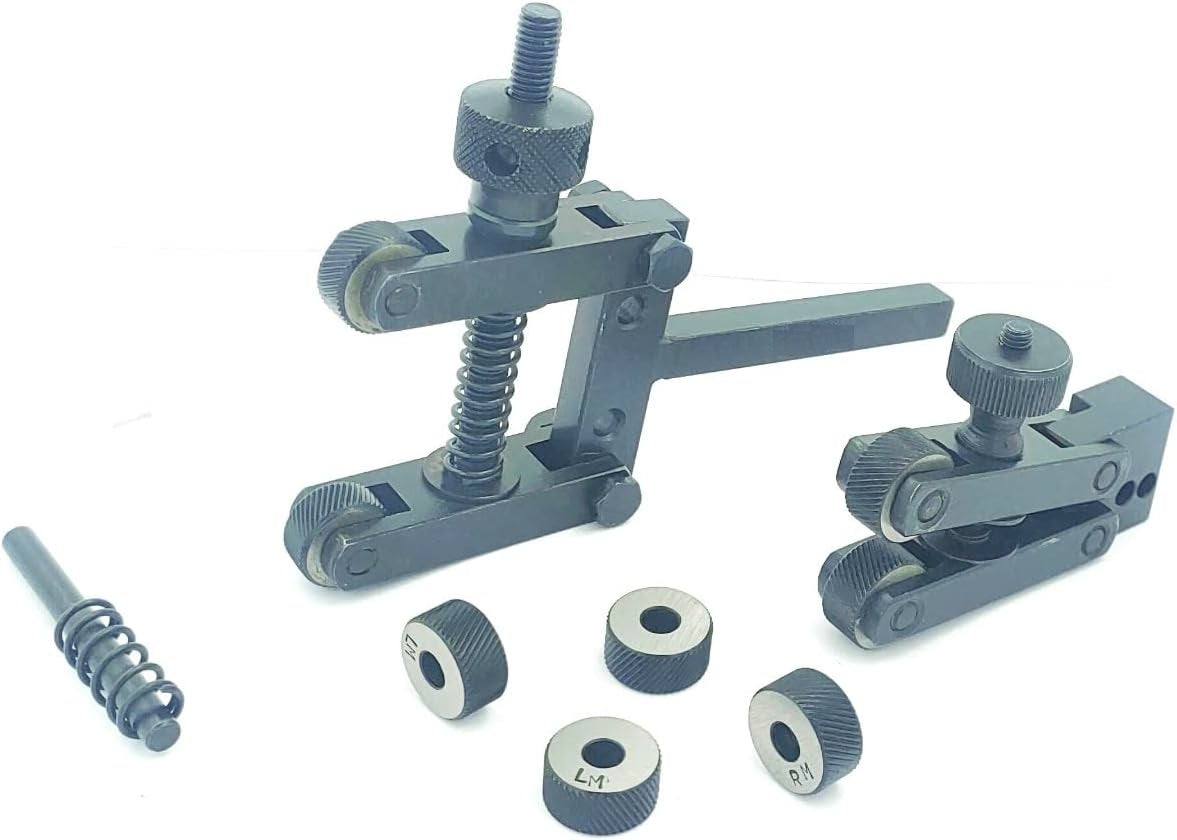

This combo contains H-Type clamp knurling tool 2" Inch/ 50 mm and V-Type clamp knurling tool with spare 4 knurls

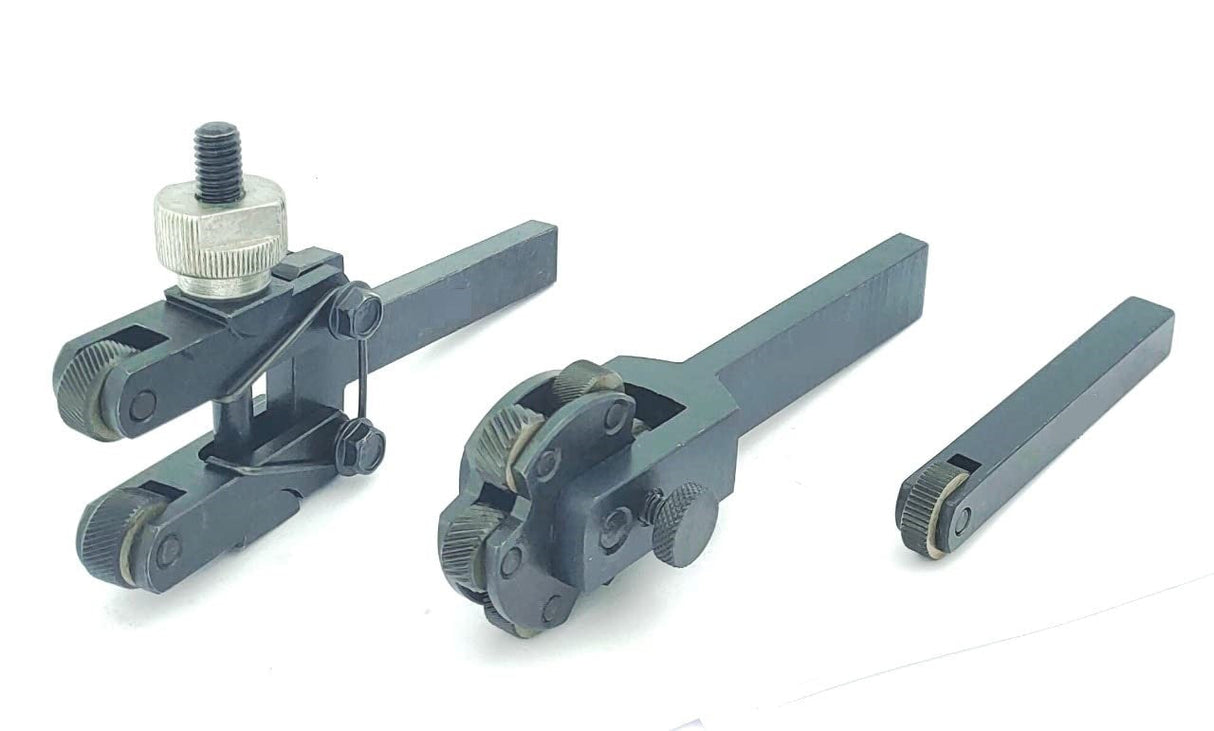

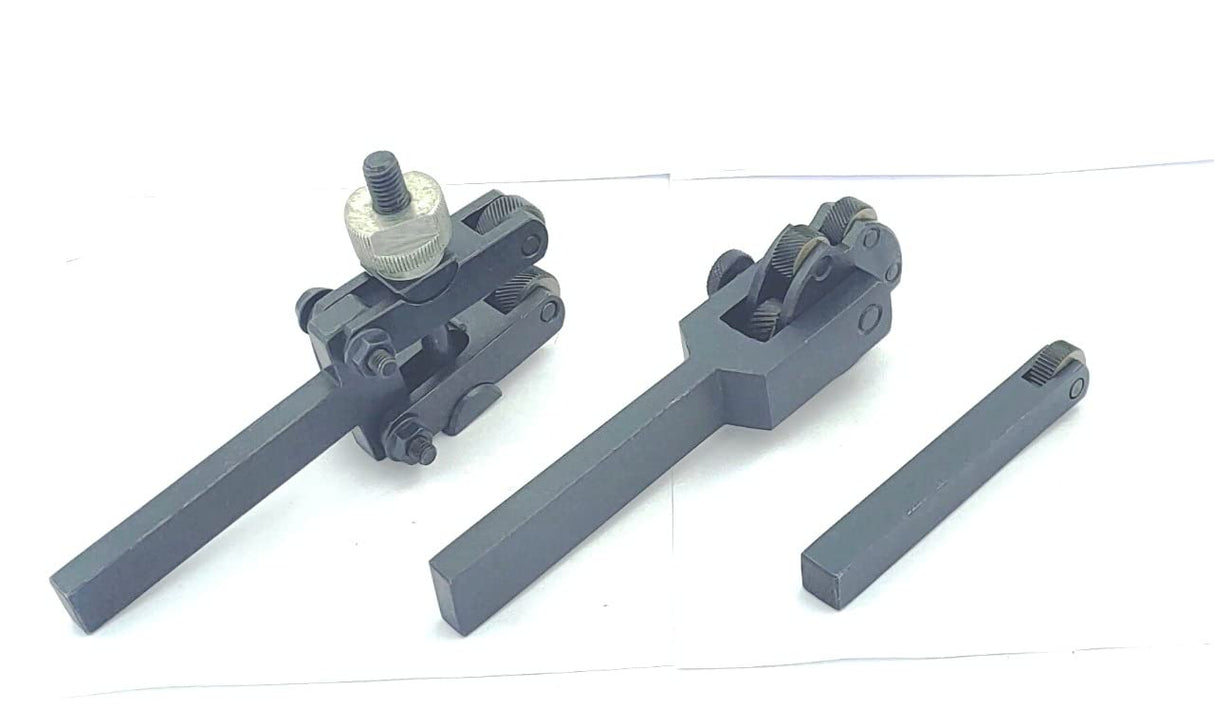

Combo 3- (Set of 3) 1 Wheel + 2 Wheels Knob + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 4"), Clamp Type Knurling Tool with an adjusting knob and 6 Wheels multi Head lathe Knurling Tool

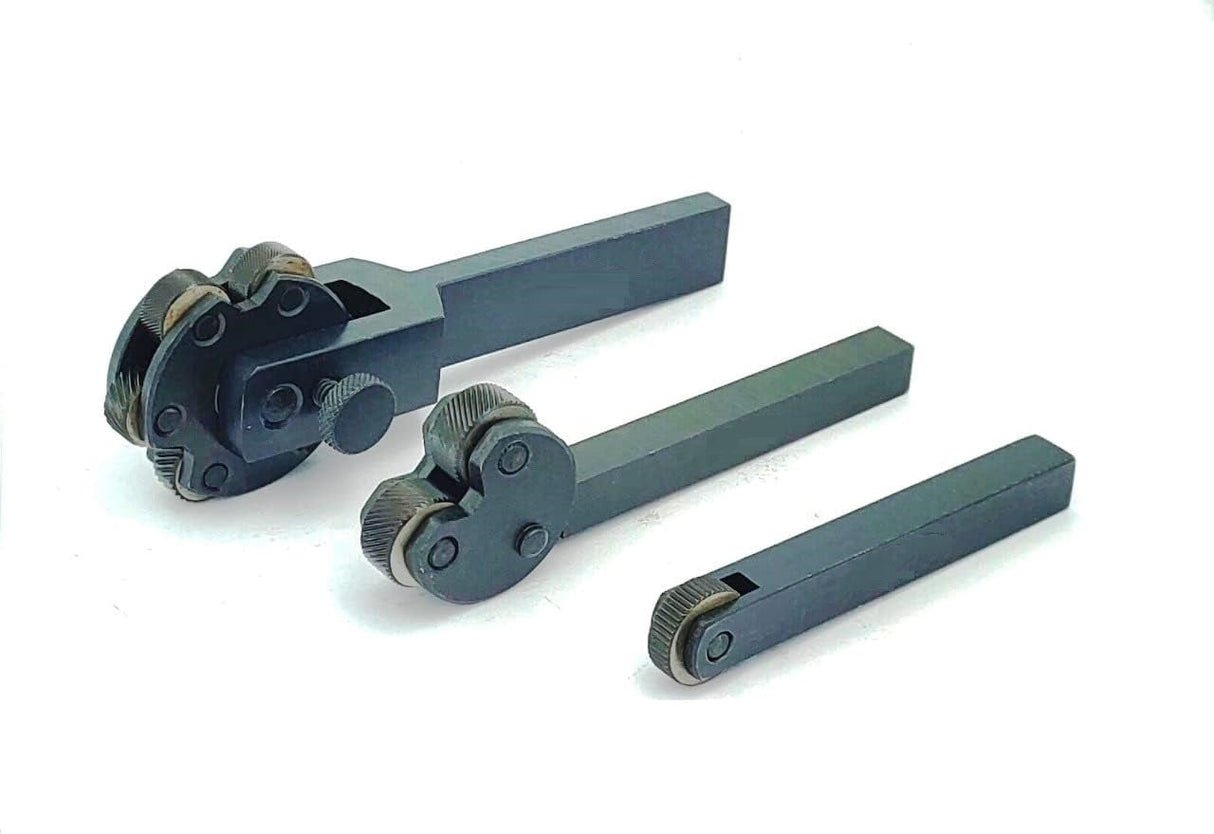

Combo 4- (Set of 3) 1 Wheel + 2 Wheels Pivot Head + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool and 6 Wheels multi Head lathe Knurling Tool

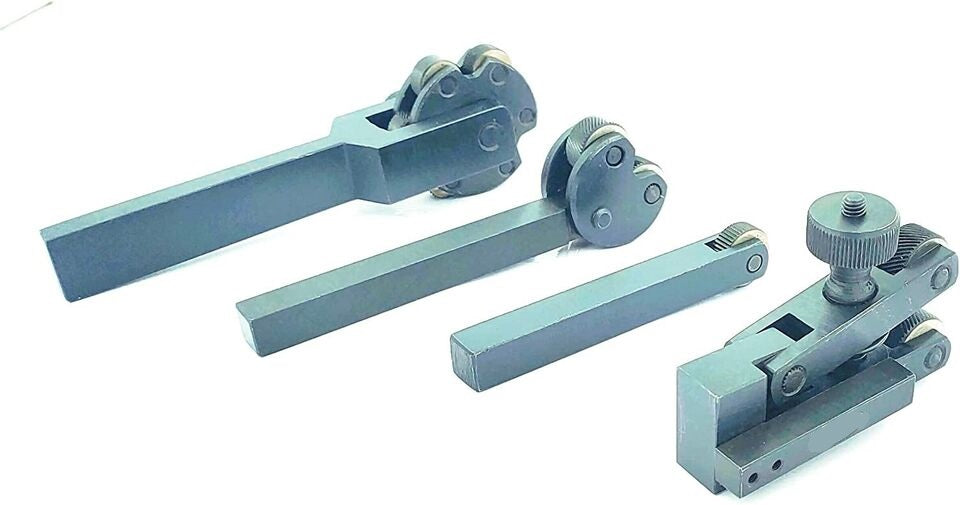

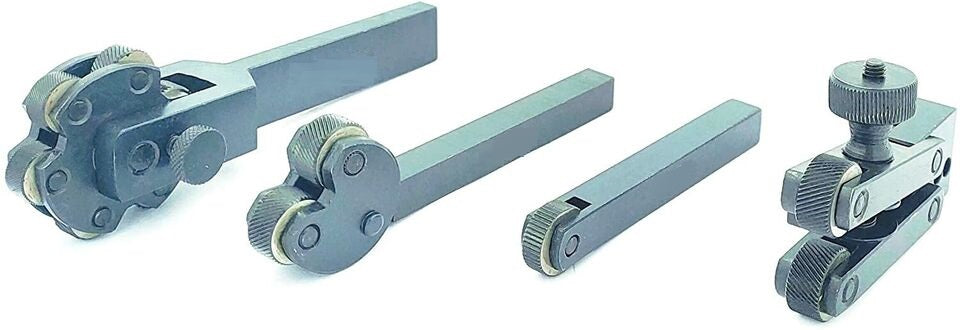

Combo 5- (Set of 4) 1 Wheel + 2 Wheels Pivot Head +2 Wheels Knob + 2 Wheel H-Type + V-Clamp Type + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool, Sturdy V clamp type knurling tool and 6 Wheels multi Head lathe Knurling Tool

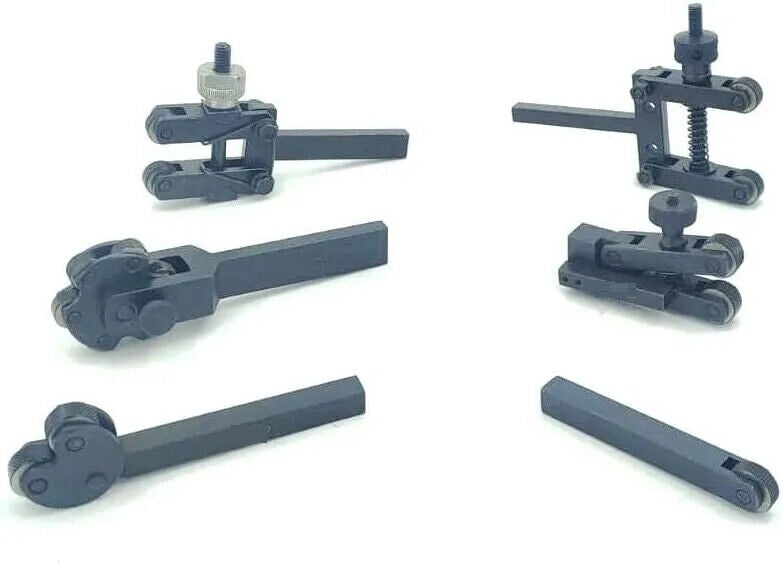

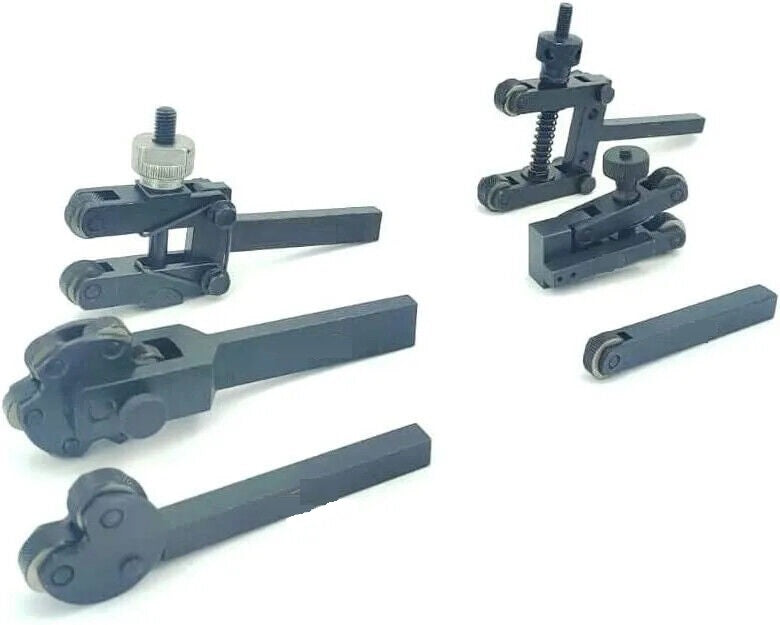

Combo 6- (Set of 6) 1 Wheel + 2 Wheels Pivot Head + V-Clamp Type + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool, Sturdy V clamp type knurling tool, Clamp Type Knurling Tool with an adjusting knob, Adjustable H Type Spring loaded clamp type knurling tool and 6 Wheels multi Head lathe Knurling Tool
